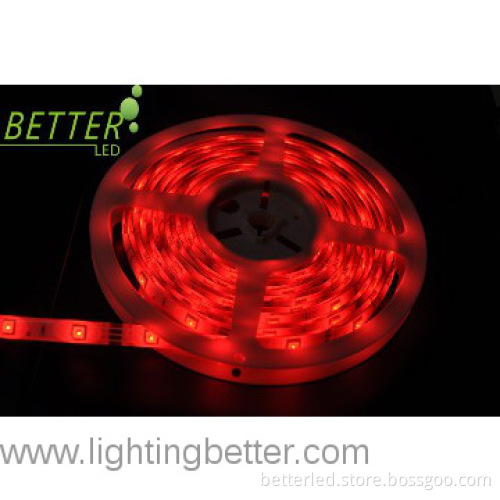

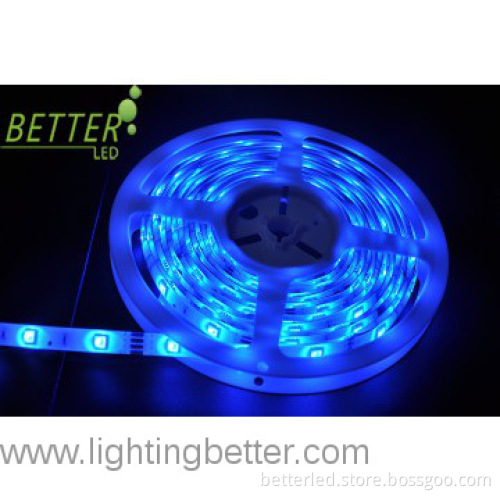

10MM PCB 5050 RGB flexible strip light 60led/m with 3 years warranty
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| colour | RGB |
|---|---|
| size | 1000*10mm |
| power | 14.4w/m |
| Brightness | 20-22lm/led |
| Working voltage | DC12V |
| Voltage | 12V |
| Colour | Full-color |
| Light Source | Induction |
Detail Description
IP65 5050 RGB LED flexible strip 60LEDs/m PU waterproof DC12V 10mm PCB with high lumens
Feature：
* 5050 RGB strip
* Size：1000*10mm
* Beam Angle：120 °
* LED：300LED/roll（60LED/M）
* PU waterproof IP65
* 200MP 3M tape in the back
* Working Voltage ：DC12V
* Working Current : 60 mA/ Group
* Power：14.4 W/M
* Brightness ：20-22lm/led
* CE Certificated
Application
*Cove lighting
*Architectural lights for canopy, corridor, window, archway
*Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
Dimension (mm)
Connection
Safety Information
Feature：
* 5050 RGB strip
* Size：1000*10mm
* Beam Angle：120 °
* LED：300LED/roll（60LED/M）
* PU waterproof IP65
* 200MP 3M tape in the back
* Working Voltage ：DC12V
* Working Current : 60 mA/ Group
* Power：14.4 W/M
* Brightness ：20-22lm/led
* CE Certificated
Application
*Cove lighting
*Architectural lights for canopy, corridor, window, archway
*Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
| Item NO. | color | LED (pcs/m) | Voltage (V) | Power(W/M) | Package |
| BE-FC5050RGB60-A/Y10 | RGB | 60 | 12 | 14.4 | 5m/roll |
Dimension (mm)
Connection
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards.
Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.Feature：
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards.
Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.Feature：
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 5 meters |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-15days |
| FOB Port | Shenzhen |
| Loading Info | FOB Shenzhen,FedEX, UPS,TNT,DHL |
| Packing Info | 5m/roll, 50rolls in a carton, carton size: 44x42x24cm |
| Target Market(s) | Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Latin America, Japan & Korea, Western & Southern Europe, Central & Southern Asia, Middle East |
