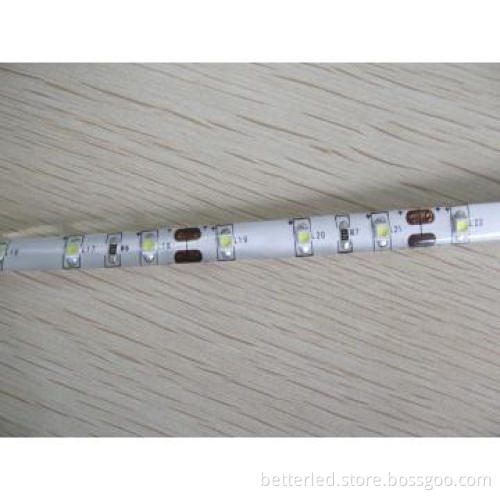

Waterproof 5050 60leds/m LED flexible strip with high quality
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Voltage | 12V |
|---|---|
| Light Source | LED |
| Colour | Warm white |
Detail Description
Specification For 5050 SMD LED Strip
( Waterproof)
Features:
² 1000mm*10mm SMD Light Ribbon(60pcs of 5050 SMD LED)
² Working Voltage：DC12 V
² Working Current：1100-1200mA
² LED View Angle：120 Degree
² Grade of Waterproof IP65
² Package:5meters /Reel
Applications:
² Path&contour marking.
² Legend backlighting.
² Illuminated signs.
² Mood and special light.
Absoute Maximum Rating at TA=25°C
Parameter |
Symbol |
Absoute Maximum Rating |
Unit |
Forward Current |
IF |
1200 |
mA |
Power Dissipation |
PD |
14.4 |
W |
Elestrostatic discharge |
ESD |
800 |
V |
Operating Temperature |
Topr |
-25~+60 |
°C |
Storage Temperature |
Tstg |
-40~+80 |
°C |
Electrical／Optical Characteristics at TA=25°C
Part Number |
Color |
Led Qty |
Led Work Current |
Wave Length |
Led Luminous Flux |
Packing |
Red |
60 |
1100-1200mA |
625-630nm |
180-200Lm |
5meters/reel |
|
Yellow |
60 |
1100-1200mA |
590-595nm |
180-200Lm |
||
Blue |
60 |
1100-1200mA |
465-470nm |
180-200Lm |
||
Green |
60 |
1100-1200mA |
515-520nm |
400-540Lm |
||
Pure White |
60 |
1100-1200mA |
5500-6500k |
720-840Lm |
||
Cool White |
60 |
1100-1200mA |
8000-10000k |
600-720Lm |
||
Warm White |
60 |
1100-1200mA |
2900-3200k |
720-840Lm |
Notes:Tolerance of measurement of luminous intensity±15%.
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 5 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-15days |
| FOB Port | Shenzhen |
| Loading Info | FEDEX UPS DHL TNT |
| Packing Info | 5m in a roll, 60rolls in a carton, carton size: 44x42x24cm |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
