Better most popular High quality SMD3528 Led strip light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Color | Single,RGB,Full Color |
|---|---|
| Chip | SMD5630,SMD2835,SMD3528,SMD5050 |
| PCB Width | 8mm,10mm |
| IP rating | IP68 |
| Sample | Free |
| Voltage | 12V |
| Colour | Full-color |
| Light Source | LED |
Detail Description

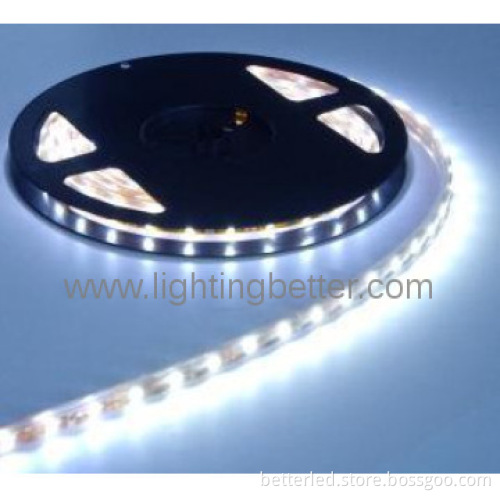

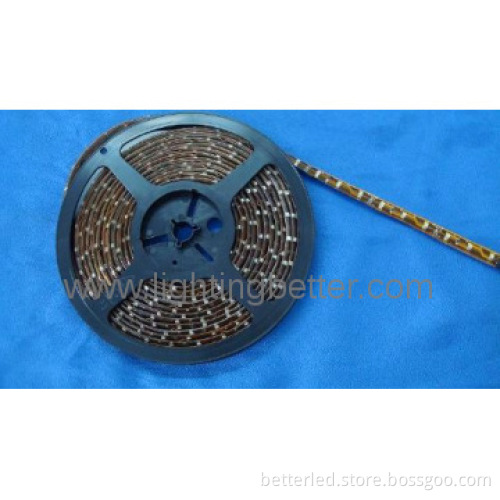

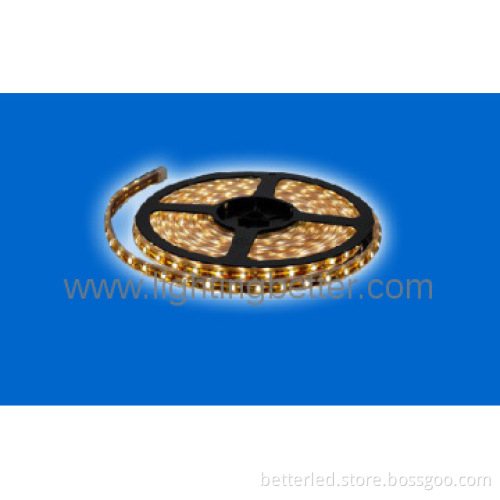

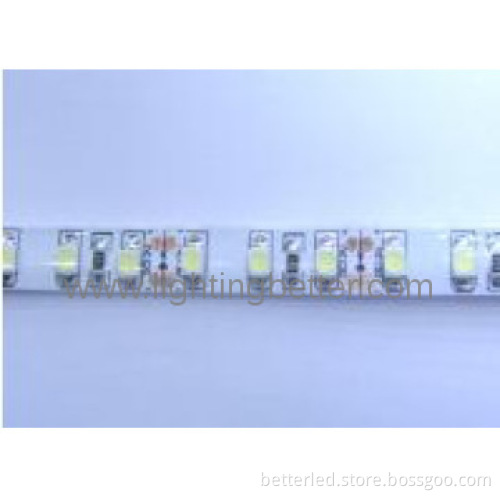

Better most popular High quality SMD3528 Led strip light
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
Forward Current |
IF |
400 |
mA |
Power Dissipation |
PD |
4.8 |
W |
Electrostatic discharge |
ESD |
800 |
V |
Operating Temperature |
Topr |
-25~+60 |
°C |
Storage Temperature |
Tstg |
-40~+80 |
°C |
Specification:
Part Number |
Color |
Led Qty |
Led Work Current |
Wave Length |
Led Luminous Flux |
Packing |
BE-FC3528R60-B/W8 |
Red |
60 |
380-400mA |
625-630nm |
60-90Lm |
5meters/reel |
BE-FC3528R60-B/W8 |
Yellow |
60 |
380-400mA |
590-595nm |
60-90Lm |
|
BE-FC3528R60-B/W8 |
Blue |
60 |
380-400mA |
465-470nm |
60-90Lm |
|
BE-FC3528R60-B/W8 |
Green |
60 |
380-400mA |
515-520nm |
180-240Lm |
|
BE-FC3528R60-B/W8 |
White |
60 |
380-400mA |
5500-6500k |
240-300Lm |
* LED type
Available SMD3528/ SMD5050/ SMD2835
* LED Qty. /m
Available 30/48/60/120/240 LEDs/Meter
* Power
Available 2.4/3.6/3.9/4.8/7.2/9.6 /11.5/14.4 W/Meter
* Color
Available R/G/Y/B/W/WW/P/RGB
* Length
Cut-able every 3LEDs along the cutting marks, pack in roll, 5m/roll in normal, different length is available.
*FPC Board Dimension
5000mm*10mm*2mm, 3M adhesive on the back
* LED brand
Available Samsung/ Epistar/ Shanan
* Shell Material
Available PVC Tube/ Silicon Glue
*Waterproof type
Available IP20 Non-waterproof/ IP65 waterproof (silicone glue)/ IP67 (PVC tube)/ IP68 Waterproof (silicone glue with PVC tube)
*Beam Angle
120 Degree with no dark space
* Driver Standard
Available Waterproof/ Non-waterproof
* Voltage
Available DC12V/ 24V/ 220V
Application
Multiple choices of non-waterproof, semi-waterproof and waterproof, suits most applications of indoor and outdoor decorations
Flexible enough to be fixed at any irregular surfaces, easy to install
Each unit of 3 LEDs can be cut off at regular segments, convenient for any length needed.
1. Indoor and outdoor lighting and decorations application
2. Shopping mall, restaurant, hotel, meeting room, exhibition halls and advertisement lighting
3. Archway, canopy, and bridge lighting
4. Amusement park, theater and aircraft cabin mood lighting
5. Auditorium walkway lighting
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 1000meters |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | delivery time:7-15days |
| FOB Port | Shenzhen |
| Loading Info | FOBshenzhen,FEDEX,DHL,EMS,TNT,UPS |
| Packing Info | Blister Package,antistatic bag,export carton,carton size:44x42x24cm |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
