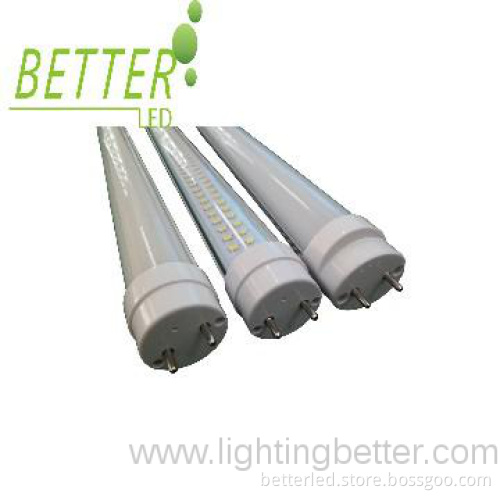

BETTER T8 LED Tube SMD 3528 With much Energy Saving
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Energy saving T8 Tube | T8 LED Tube SMD3014 7W |
|---|---|
| Power | 7W |
| Life | 3 Years |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Color Tones | Warm Color |
| Lamp Base | G13 |
| Length | 60cm |
| Illuminant | SMD |
| Voltage | 110-220V |
Detail Description
Certificate
LM8000
Energy Star
ETL
Basic Parameters
Electrical Characteristics：
Ø Input Voltage：AC100-277V 50/60Hz
Ø Power：10W
Ø Power Factor：>0.9
Optical Characteristics：
Ø LED Chip Quantity：156pcs
Ø LED Chip Type：SMD3528
Ø Lumen：3000K warm white ---950LM , 4000K natural white -- 1050LM , 5000K day white -- 1100LM
Ø Beam Angle：>150°
Ø Color Temperature：3000K warm white,4000K natural white, 5000K day white
Ø Color Rendering Index(CRI)：>80
Size：
Ø Tube Size：φ26*588mm
Ø Tube Package Size：φ40*620mm
Ø Carton Size：650*350*200mm
Ø Tubes/Carton：50pcs
Ø Tube Net Weight/pcs：146g±5%
Ø Gross Weight/pcs：12.8kg±5%
Applications
Ø Office
Ø Hospital
Ø School
Ø Supermarket
Ø Factory
Ø Bank
Product Structure Diagram
Product Wiring Diagram
Installation Cautions：
Ø Please check if the LED tubes are damaged before installation;
Ø Please check if the corresponding lighting switches are off before installation;
Ø Please check if the wires are correctly connected and the ballast is removed
during installation；
Ø Please don’t dismantle the product by a non-qualified person；
Ø The product can work properly if the installation diagram is followed
Product Installation Diagram for Light Panel
Please remove the ballast during installation and make sure
the electrical wires are correctly connected.
Product Packing Diagram
Product Packing Procedures:
Ø LED tubes are enclosed in the corresponding package；
Ø The packed Tubes are then put in the carton;
Ø Tapped the carton for delivery.
Applications
Additional Information
| Payment Terms | L/C, T/T, Western Union, Others |
|---|---|
| Minimum Order | 3pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample order: 3-5daysBulk order: 7-12days |
| FOB Port | Shenzhen |
| Loading Info | Mainly we can ship the parts by DHL,FEDEX,UPS,TNT ect when the quantity is small. We can also ship by appointed cargo company by customers. |
| Packing Info | One Tube into One Box, 20pcs into One Carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
