BETTER T8 0.6m3528 Non-Isolated Tube with UL/ETL energy and environmen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Colour | cold white/warm white /white |
|---|---|
| Power | 9W |
| Life | 30000h |
| Package | Yes |
| Light Source Chip | SAMSUNG |
| Tube Diameter | T8 |
| Length | 60cm |
| Color Tones | Cool Color |
| Voltage | 90-260V |
| Lamp Base | E17, GU10 |
| Illuminant | LEDs |
Detail Description

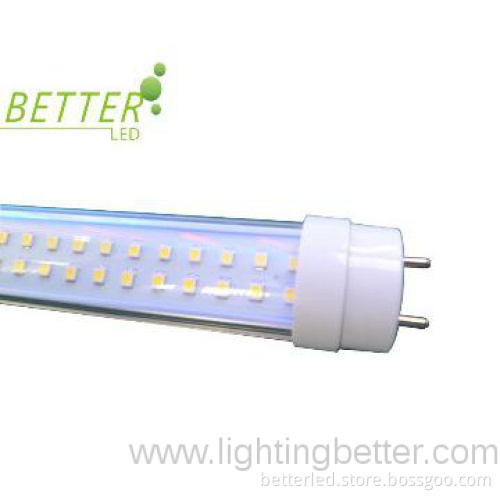

T8 0.6m3528 Non-Isolated Tube
Basic Parameters
Electrical Characteristics：
Ø Input Voltage：AC100-277V 50/60Hz
Ø Power：9W
Ø Power Factor：>0.9
Optical Characteristics：
Ø LED Chip Quantity：144pcs
Ø LED Chip Type：SMD3528
Ø Lumen：>850LM
Ø Beam Angle：>150°
Ø Color Temperature：5000-6000K (White)
Ø Color Rendering Index(CRI)：>80
Size：
Ø Tube Size：φ26*588mm
Ø Tube Package Size：φ40*620mm
Ø Carton Size：650*350*200mm
Ø Tubes/Carton：50pcs
Ø Tube Net Weight/pcs：146g±5%
Ø Gross Weight/pcs：12.8kg±5%
Applications
Ø Office
Ø Hospital
Ø School
Ø Supermarket
Ø Factory
Ø Bank
Product Structure Diagram
Ø Please check if the corresponding lighting switches are off before installation;
Ø Please check if the wires are correctly connected and the ballast is removed
during installation；
Ø Please don’t dismantle the product by a non-qualified person；
Ø The product can work properly if the installation diagram is followed
the electrical wires are correctly connected.
Product Packing Diagram
Ø The packed Tubes are then put in the carton;
Ø Tapped the carton for delivery.
Basic Parameters
Electrical Characteristics：
Ø Input Voltage：AC100-277V 50/60Hz
Ø Power：9W
Ø Power Factor：>0.9
Optical Characteristics：
Ø LED Chip Quantity：144pcs
Ø LED Chip Type：SMD3528
Ø Lumen：>850LM
Ø Beam Angle：>150°
Ø Color Temperature：5000-6000K (White)
Ø Color Rendering Index(CRI)：>80
Size：
Ø Tube Size：φ26*588mm
Ø Tube Package Size：φ40*620mm
Ø Carton Size：650*350*200mm
Ø Tubes/Carton：50pcs
Ø Tube Net Weight/pcs：146g±5%
Ø Gross Weight/pcs：12.8kg±5%
Applications
Ø Office
Ø Hospital
Ø School
Ø Supermarket
Ø Factory
Ø Bank
Product Structure Diagram
Product Wiring Diagram
Installation Cautions：
Ø Please check if the LED tubes are damaged before installation;Ø Please check if the corresponding lighting switches are off before installation;
Ø Please check if the wires are correctly connected and the ballast is removed
during installation；
Ø Please don’t dismantle the product by a non-qualified person；
Ø The product can work properly if the installation diagram is followed
Product Installation Diagram for Light Panel
Please remove the ballast during installation and make sure
the electrical wires are correctly connected.
Product Packing Diagram
Product Packing Procedures:
Ø LED tubes are enclosed in the corresponding package；Ø The packed Tubes are then put in the carton;
Ø Tapped the carton for delivery.
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample order: 3-5daysBulk order: 7-12days |
| FOB Port | Shenzhen |
| Loading Info | Mainly we can ship the parts by DHL,FEDEX,UPS,TNT ect when the quantity is small. We can also ship by appointed cargo company by customers. |
| Packing Info | One Tube into One Box, 20pcs into One Carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
