full colour 3 leds RGB led module with Plastic cover

Warmly welcome full colour 3 leds RGB  led module with Plastic cove
Product Description:

The magic module is a combination of plastic basing material,

PCB broad and connection wires (UV, high and low temperature resistant).

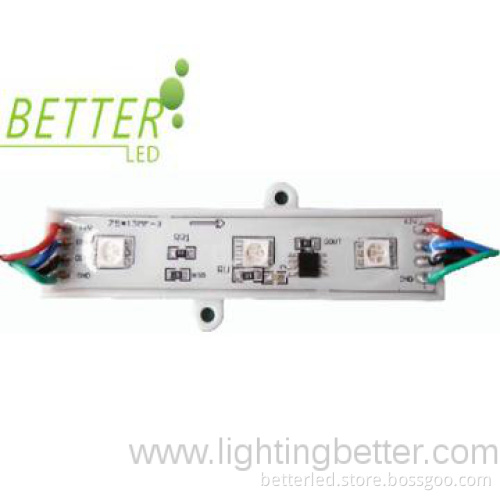

A piece of module consists of 3 5050 RGB SMD LED chips which are capable to display the effect of

a full color picture or any animation depends on the installation pattern of

the module and the controller connected. The advantages of the product are easy installation,

high lumen output, energy efficiency, long life span, low light decay and etc. It is applicable

to the signboard, advertising board or printing screen of hotel, KTV or any other kinds of

entertainment center.

This product can at most be connected with 20 pieces in series where exceeding this limit is

definitely prohibited. The cross-section area of the product’s power cable shall be sized according to the maximum current, product power,

 wire length (suggested not to exceed 6 meters) as well as the voltage drop in

 the lower voltage connection wires.

Parameter :

*LED type : 5050SMD 3 RGB leds

*  Model No.: ME01-1

* Size :78*15

* Waterproof rate : IP65

* Package : 25pcs/roll , 200pcs/bag , 2000pcs/carton (special designed can be 90pcs/roll)

* Input Voltage : DC12V

* Power : 0.72W

Dragram :(MM)

Connection Way :

Connect the controller and DC12V transformer
Connect the controller to AC220V Power Source

Controller Technical Parameter:

* Input Voltage
 AC110V/220V (Depends on working environment and factory settings)
* Power Plug
 International, UK, US Standard (Depends on working environment and factory settings)
* Power Consumption < 2W
* Control Protocol
  ICC DMX512/1990
* Supporting Chips
 TM1829 DMX 512/1990 Decoder/Driver
* Pixel Control
 1200 Points/2048 Points/512 Address(Channel)
* Grey Scale 256
* SD Card
 Support FAT System
*Working Temperature
 -35oC-75oC
 *Play Speed
 Default 20 frame/sec;
*Indicator
 Power indicator (Green, Power); Play Speed Indicator (Red, State)
