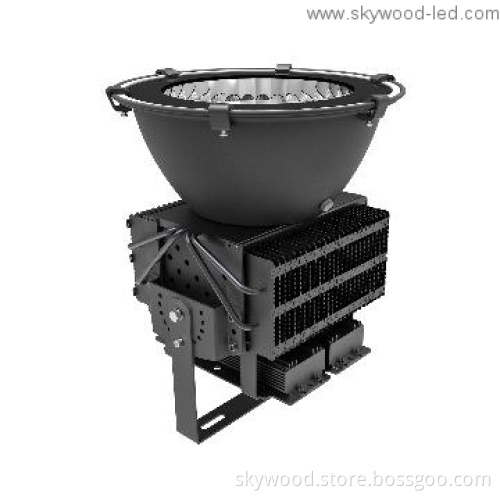

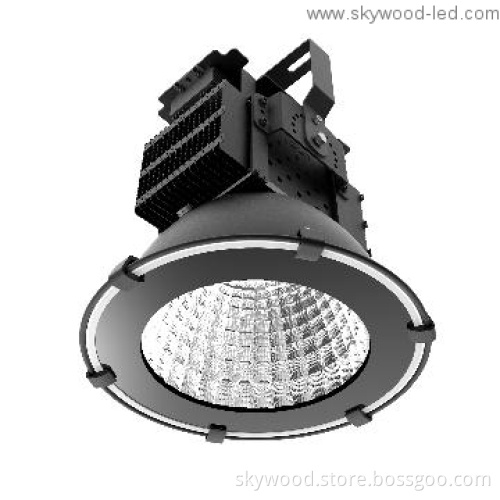

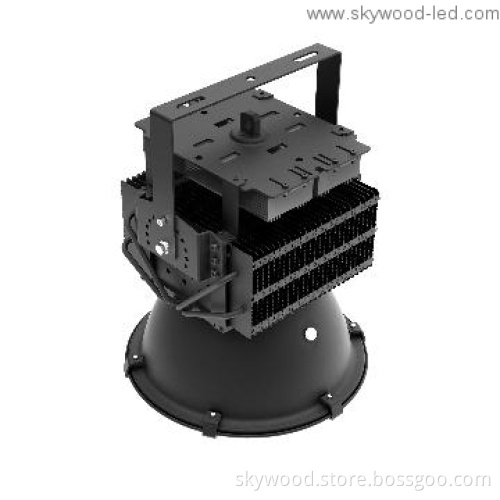

100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp
  • 100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp
  • 100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp
  • 100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp
100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp
100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp
100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp

100w,150w,200w,300w,400w,500w waterproof mining lamp,highbay lamp

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Light Source LED
IP IP65
Material Aluminum, Glass
Voltage 90-260V

Detail Description

Technical Parameters
Model LSL-HB-100W LSL-HB-150W LSL-HB-200W LSL-HB-300W LSL-HB-400W  LSL-HB-500W
Input voltage/Frequency AC 100-240V,50-60Hz
LED Chip Brand Cree XBD
LED Chip Q\'ty 60pcs 90pcs 130pcs 192pcs 280pcs 280pcs
LED Driver Brand Meanwell
Power Factor >0.90
Efficiency >0.80
Luminous flux 80-90lm/W
Beam angle 60°
IP Grade IP65
CRI >75Ra
CCT 2700-7000K
Storage Temperature -40℃～+65℃
Operating Temperature -20℃～+50℃
Lifespan >40,000 hrs
Warranty 5 Years
Product Material Aluminum Alloy
Product Dimension Ø367*H459mm Ø367*H459mm Ø367*H467mm Ø367*H459mm Ø367*H497mm Ø367*H497mm
Packing Dimension 455*455*510mm 475*475*510mm 455*455*510mm 475*475*510mm 465*465*550mm 485*485*550mm
Net Weight (approx) 7.50kg 9.00kg 9.50kg 12.00kg 14.50kg 15.50kg
Gross Weight (approx) 9.80kg 11.00kg 11.50kg 14.50kg 17.00kg 18.00kg

Features:
*IP65 water-proof.
*High power LED heat sink.
*Direct replace traditional high-power sodium lamps and metal halide lamps.
*Modular radiator,support Power diversification.
*13 bracket adjustment points, adjustable angle of 216°.
*The reflector reflective efficiency  up to 92%.
*Copper heat pipe thermal conductivity, rapid cooling and prolong lifespan.

Applications:
Factories, Stadiums, Golf courses, Lighting engineering, Squares, Ships, Subway stations,Warehouse,Airports,Underground garage,Hospitals,Schools,Libraries,Commercial establishments, Cverpasses, Outdoor advertising,and so on.

Additional Information

Payment Terms L/C, T/T, Paypal
Minimum Order 1
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details By SEA OR BY Express, Air delivery
FOB Port Shenzhen
Loading Info FOB Shenzhen or EXW
Packing Info carton box or according to your requirement
Target Market(s) Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
