LM80 SAA High quality COB led high bay light 200W LED industrial light
  • LM80 SAA High quality COB led high bay light 200W LED industrial light
LM80 SAA High quality COB led high bay light 200W LED industrial light

LM80 SAA High quality COB led high bay light 200W LED industrial light

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Product Name LED industrial light
Applications Supermarket,Gymnasium,Exhibition hall
Radiator Material 6063 aluminum
Power cord material Rubber/PVC
Reflector material 1070 aluminum
Voltage 110-220V
Material Aluminum Die Casting, PC, PVC, Silicone, Stainless Steel, Steel
Light Source LED
IP IP65

Detail Description

LM80 SAA High quality COB led high bay light 200W LED industrial light

Model:YWHBFM-150-080


LED industrial light power range :


Model

Power
  (W)

Input Voltage

Lumen
  (lm)

Radiator Dimension
  (mm)

Net Weight
  (kg)

YWHBFM-100-080

100

AC100-240VAC

8696lm

 Dia. 210* H120mm

5.1

YWHBFM-100-120

100

AC100-240VAC

9782lm

 Dia. 210* H120mm

5.1

YWHBFM-120-080

120

AC100-240VAC

9815lm

Dia. 210* H120mm

5.1

YWHBFM-120-120

120

AC100-240VAC

11046lm

Dia. 210* H120mm

5.1

YWHBFM-150-080

150

AC100-277VAC

12679lm

Dia. 210* H135mm

5.3

YWHBFM-150-120

150

AC100-277VAC

14220lm

Dia. 210* H135mm

5.3

YWHBFM-180-080

180

AC100-277VAC

14600lm

Dia. 210* H135mm

5.3

YWHBFM-180-120

180

AC100-277VAC

16330lm

Dia. 210* H135mm

5.3

YWHBFM-200-080

200

AC100-277VAC

15386lm

Dia. 210* H135mm

5.3

YWHBFM-200-120

200

AC100-277VAC

17218lm

Dia. 210* H135mm

5.3

LED industrial light CRI>80 : (healthy for eyes)

LED industrial light benefits:

1. 50% energy saving,low comsuption.

2. Environment friendly&pure light.

3. Easy to install.

4. Long life span.

5. Instant start, no glare.


YOUWIN LED industrial light advantages :

1. Material: Lamp sheel adopts excellent aluminum, anodizing and anti-corrosion treatment, fancy performance, compact and beautiful structure. Bottom with Acrylic glass cover, explodeproof and dustproof.

 2. LED Chip: Use high brightness single semiconductor chip Bridgelux 45mil as light source, use multiple integrated single-chip design.

 3. LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp’s stability. Thermal protection system avoid Operating temperature over 75 °C

 4.Radiator: made by stretched aluminum, with stretched high purity anodized aluminum plate as reflex housing ,Flipper Aluminum , cool down the temperature much more quickly.

5. Failure protection device : easy install

6. it can perfect co-work with reflector cup and offer the well mixed facular and angle


NO WARM UP
·           LED high bay lights are at maximum light intensity   only seconds after they are switched on,
·           They don\'t require the lengthy warm up time of   metal halide light.
·           Conventional HID lights also take up to 15 minutes   to cool down once they are switched off before they can be switched on again.
·           LED high bay can be switched of and then straight   back on, No more delays in the event of momentary power interruption



LED industrial light Technical Data:


LED Chips :

Power

200W

USA Bridgelux 45mil chip:

BXCE4545455-G2

CRI:

>80

Color Temperature:

WW / NW / CW

LED Efficiency

120 lm/w


LED Driver/Power Supply :


Taiwan Meanwell driver:

HLG-240H-48A

Input Votage:

90-277VAC (220V 230V 240V)

Power Factor

>0.95

Efficiency

>0.9



Installation :

Very easy to install as per our professional instruction.

LED industrial light packaging info :

Type

Dimension (cm)

Carton

Lamp unit

100-120w

L50*W31.5*H34.5

2pcs/ctn

150-200w

L50*W31.5*H35.5

2pcs/ctn

Lamp shade

Aluminium 80℃

L48*W48*H44

20pcs/ctn

Aluminium 120℃

L56*W56*H31

20pcs/ctn

Aluminium 90℃

L56*W56*H36

20pcs/ctn

PC 80℃

L48*W48*H52

20pcs/ctn

LED industrial light Production photos :

YOUWIN specialize purely on LED high bay light.

1. Production on line;

2. Ageing 24 Hours;

3. Test by equipment.

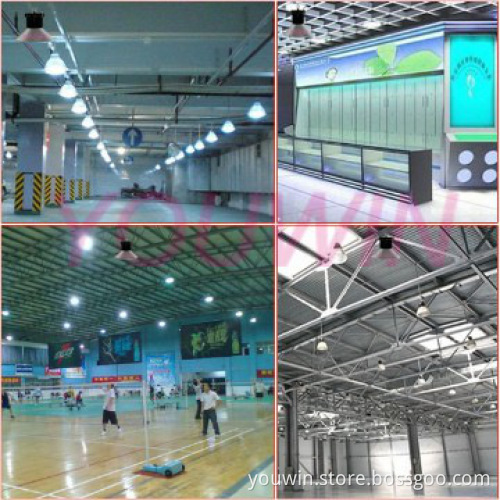

LED industrial light Applications:

Workshop,warehouse,toll station,gas station ,supermarket,gymnasium,exhibition hall,and other public lighting places.

YOUWIN factory :

Create Value for customers.30W 50W 80W 100W 120W 150W 160W 180W 200W 220W 240W

 Why choose YOUWIN as an supplier?
YOUWIN\'s Mission \"To Create Value for Customers\".
·  Focus on LED high bay light
·  With years’ experience in research & development
·  High reputation, reliable LED supplier




 LED industrial light certificates :

1.CE RoHs for Europe market;

2. SAA C-Tick RCM for Australia market;

3. SASO for Saudi Arabia market



 OUR service :

 Contact info :

More detailes about YOUWIN led high bay light,pls do not hesitate to contact us!

Customers satisfation is what we pursuit for all the time!

Additional Information

Payment Terms L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others
Minimum Order 1
Lead Time / Delivery Time 1 Day(s)
Sample Available YES
Delivery Details 30% deposits before production,70% balance to be paid before delivering. 3-5days for sample .7-15days for bulk order.
FOB Port Shenzhen,
Loading Info By sea.By air By express (DHL.UPS.GLE.FEDEX.TNT .etc).
Packing Info Part A: 30*24.5*34cm (1pcs/Box) 50*31.5*35.5cm (2Box/ctn)Part B: 80 degree 44.5*44.5*42cm (20pcs/ctn) 90 degree 52.5*52.5*35cm (20pcs/ctn)
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
