high quality Meanwell driver industrial 150w led high bay lamp ce rohs
  • high quality Meanwell driver industrial 150w led high bay lamp ce rohs
  • high quality Meanwell driver industrial 150w led high bay lamp ce rohs
high quality Meanwell driver industrial 150w led high bay lamp ce rohs
high quality Meanwell driver industrial 150w led high bay lamp ce rohs
high quality Meanwell driver industrial 150w led high bay lamp ce rohs
high quality Meanwell driver industrial 150w led high bay lamp ce rohs

high quality Meanwell driver industrial 150w led high bay lamp ce rohs

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Beam angle 80/90/120 degree
Warranty 5 years
LED driver Meanwell drive HLG-240H-48A
Application Supermaket,mining,factory,railway
Product Name led high bay lamp
IP IP65
Material Aluminum, Aluminum Die Casting
Light Source LED Lamp
Voltage 90-260V

Detail Description

high quality Meanwell driver industrial 150w led high bay lamp ce rohs

Model number: YWHBFP-150-80

1. \"YW\": YOUWIN

2. \"HB\": LED high bay light

3. \"FM\": Fan + Moudle COB Bridgelux 45mil chip

4. \"150\": 150 watt

5. \"80\": Aluminum Shade Beam Angle 80 degree

Products Features:

1. 2700-6500K colour temperatures

2. Luminous flux to 15000lm

3. Instant start and restrike

4. Rated 50,000 hours average lamp life LM80, LM79 test reports

5. Heavy Duty Suspension mounting hook

6. CRI >80 provides good visual performance

7. Mains volt supply 10 to 277V AC reduces brown outs

8. Replaceable driver for continued service life

9. 5 Year Warranty for approved projects

10. 1.5mtr Flex

LED high bay lamp parameters:

1 Model YWHBFM-200-120
2 Power 200W
3 Beam Angle 120 degree
4 Lumen output >18000lm
5 CCT 2700-6500K
6 Insulation Grade Class I
7 Working temperature -30~+50
8 Heat sink 6063 AL
9 Lamp shade 1070AL grinding   inside,polishing outside
10 Lamp body Black/silvery
11 Life Span >50,000 Hours
12 Warranty 5 Years
13 N.W. 6.0KG
14 Certificate CE RoHS SAA RCM SASO



led chips parts:

1 LED Chips Brand USA Bridgelux
2  COB Model Number BXCE4545455-G2
3 CRI: >80
4 Color   Temperature: WW   / NW / CW
5 LED   Efficiency  120   lm/w

led driver parts:

1 Meanwell driver HLG-185H-48A
2 Input Voltage 100-277VAC   (220V,230V,240V)
3 Efficiency >0.95
4 Power Factor >0.95
5 Suitable Wattage 180W,170W,160W,150W

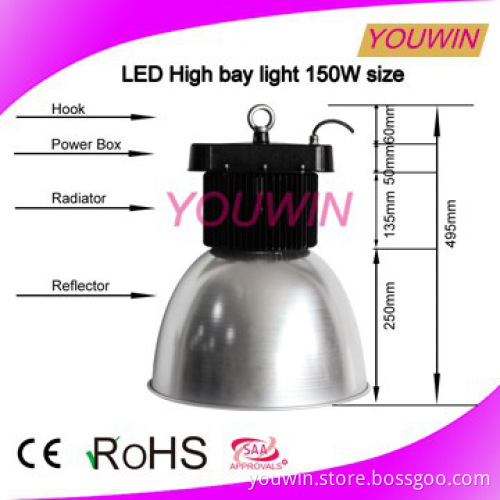

Appearance of led high bay lamp

1. stainless IP 65 waterproof cable glands
2.Heat sink made of 56 picese stretched aluminum high efficiency heat dissipation
3. Shade mady of high-purity aluminum, abrasive blasted,Efficient reflective and uniform lighting intensity.
4. Driver Box mady by die-casting aluminum,
5. Stainless hook

Specification of Philips Led High Bay Light

led high bay lamp Optional
USA Bridgelux chip + Meanwell driver 5 years Warranty,
Philips chip + Meanwell driver 5 years Warranty,
Cree chip + Meanwell driver 5 years Warranty,
Osram chip + Meanwell driver 5 years Warranty.

Arrange of Philips Led High Bay Light

Model Power
    (W)
Input Voltage Lumen
    (lm)
Radiator   Dimension
    (mm)
Net Weight
    (kg)
YWHBFM-100-080 100 AC85-265VAC 8696lm 210*   H120mm 5.1
YWHBFM-100-120 100 AC85-265VAC 9782lm 210*   H120mm 5.1
YWHBFM-120-080 120 AC85-265VAC 9815lm 210*   H120mm 5.1
YWHBFM-120-120 120 AC85-265VAC 11046lm 210*   H120mm 5.1
YWHBFM-150-080 150 AC85-265VAC 12679lm 210*   H135mm 5.3
YWHBFM-150-120 150 AC85-265VAC 14220lm 210*   H135mm 5.3
YWHBFM-180-080 180 AC85-265VAC 14600lm 210*   H135mm 5.3
YWHBFM-180-120 180 AC85-265VAC 16330lm 210*   H135mm 5.3
YWHBFM-200-080 200 AC85-265VAC 15386lm 210*   H135mm 5.3
YWHBFM-200-120 200 AC85-265VAC 17218lm 210*   H135mm 5.3

Philips Led High Bay Light Application:
Workshop, warehouse, toll station, supermarket, exhibition hall, gymnasium and other indoor illumination places.


Installation of Philips Led High Bay Light

Very easy to installation with hook and safety rope

Why choose YOUWIN Led High Bay Lamp:

5 years warranty with high quality.

1). If driver failed, we\'ll send new driver for replacement;

2). If LED failed, we\'ll send new LED for replacement;

3). For unclear reasons, we will replace the full set for you; All freight at our side;

led high bay lamp Trade term term

1. payment: T/T ,Western Union, PayPal.

2. Samples can be delivered in 1days.

3. Shipping freight is quoted under your request.

4. Discounts are offered based on order quantities, MOQ 100pcs.

---------------------------------------------------------------------------------------------------------------------------------ur service

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all you enquire in fluent English.

3. OEM & ODM, any your customized lightings we can help you to design and put into product.

4. Distributers are offered for your unique design and some our current models.

5. Protection of your sales area, ideas of design and all your private information.

Package of Philips Led High Bay Light

Type Dimension (cm) Carton
Lamp unit 100-120w L50*W31.5*H34.5 2pcs/ctn
150-200w L50*W31.5*H35.5 2pcs/ctn
Lamp shade Aluminium 80℃ L48*W48*H44 20pcs/ctn
Aluminium 120℃ L56*W56*H31 20pcs/ctn
Aluminium 90℃ L56*W56*H36 20pcs/ctn
PC 80℃ L48*W48*H52 10pcs/ctn


Certificate of Led High Bay lamp
1. European standard with CE RoHS certificate

2. Australia standard with SAA RCM certificate

3. Saudi Arabia & United Arab Emirates standard with SASO certificate


YOUWIN choose YOUWIN LED high bay lamp:

Why YOUWIN

1.Quality Assurance: All the products will go through 6 checks during production, raw material check, Light chip check, aluminum plate check, power supply check, the finished products 24 hours test and Integrating sphere test.

2.Warranty: 5 years warranty, the broken lights will be replaced and the new lights will be replace from next order.

3.Production capacity: Monthly production more than 5000 pcs products for LED high bay light, exported world-widely.

4.Competitive price: Factory direct sale, big price

If any of your interesting in our Philips Led High Bay Light pls do not hesitate to contact us!

 Skype    youwin002



Additional Information

Payment Terms L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others
Minimum Order 10
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details 30% deposits before production, 70% balance to be paid before delivery. 3 days for sample, 7-10 days for bulk order.
FOB Port Shenzhen,
Loading Info By Sea, BY Air, By Express
Packing Info Light Body:Carton size : L50*W31.5*H35.5 cm ( 2pcs/ctn)Net weight :10.6 KG/CTNGross weight :13.0KG/CTN
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
