Shenzhen factory high power 200w warehouse saa led high bay ce rohs
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Warranty | 5 years |
|---|---|
| Luminous Flux | 100lm/w |
| Beam angle | 80/90/120 degree |
| LED chips | Bridgelux BXCD4545455-G2 |
| Product name | saa led high bay |
| IP | IP56 |
| Material | Aluminum, Aluminum Die Casting |
| Light Source | LED Lamp |
| Voltage | 90-260V |
Detail Description
Shenzhen factory high power 200w warehouse saa led high bay ce rohs
YWHBFM-200-120
Our factory tenet: \"Create Value For Customer\"
1. Patent led high bay light, only be supplier for distributor and Project Company.
1. We design the fans in the heat sink temperature 45 centigrade, warranty 5 years.
2. Reduce the weight and size, can save shipping cost and easier to install.
3. Most competitive price for dealers and Project Company.
With good heat resistance, suitable for tropical country, comply with EU new standard CRI>80 for 200w saa led high bay.
| saa led high bay Main Parameters | |||
| Driver | Meanwell Driver | CRI | Ra >80 |
| LED Chips | Bridgelux BXCE | Color Temperature | 3000-6500K |
| IP Rating | IP21 | Luminous Efficiency | 100lm/w |
| Guarantee | 5 Years Warranty | Operating Voltage | 100-277VAC |
| Certifications | SAA,CE,RoHS,SASO | Operating Temperature | -40 ºC to +50 ºC |
| Heat Radiator | Anodized Aluminum | Operating Humidity | 10% to 90% |
| Face | Anti-static Coating | Power Fact | >0.95 |
| LED Life Span | 50,000 hours | Power supply efficiency | >90% |
| Additional Function | Dimming by 1-10VDP, PWM signal or resistance |
SAA led high bay features
1. Luminous flux to 15000lm
2. Instant start and restrike
3. Rated 50,000 hours average lamp life LM80, LM79
4. Heavy Duty Suspension mounting hook
5. CRI >80 provides good visual performance
6. Mains volt supply 80 to 250V AC reduces brown outs
7. Replaceable driver for continued service life
8. 5 Year Warranty for approved projects
90 1.5mtr Flex
saa led high bay advantage
1. CE RoHS SAA RCM SASO approved, high quality guaranteed
2. Imported original Bridgelux or Philips, Osram & CREE chip, authorized Shenzhen based LED high bay light supplier
3. MeanWell driver for all High bay
4. Optical toughened glass for the lens, high transmission of light; strong resistant of corrosion; extremely safe
5. VDE/SAA/UL standard wire is included
6. Reliable quality & credit, 5 years warranty and 50,000 hours lifespan
7.24Hrs Auto Aging test time, every lamp will be checked by QC before packed
8. Fast delivery, 1 day for sample, 5-10 days for 100pcs, 10-15 days for container after payment confirmed
9. MOQ 100PCS with fantastic price. Monthly supply above 5000pcs
10. Tough box will be designed for the items, keep the safety of goods in the transportation
SAA LED high bay Application
| 1.Gymnasium, Sports Stadium Lighting; |
| 2.Gas Station, Petrol Station Conference Centers ,Garage Lighting, Canopy Lighting; |
| 3.Parking Area, Cold Storage, Station,Dock; |
| 4.Workshop, Office, Show Room,Plant Area, Factory Lighting; |
| 5.Warehouse, Storage Lighting, High Bay Lighting. |

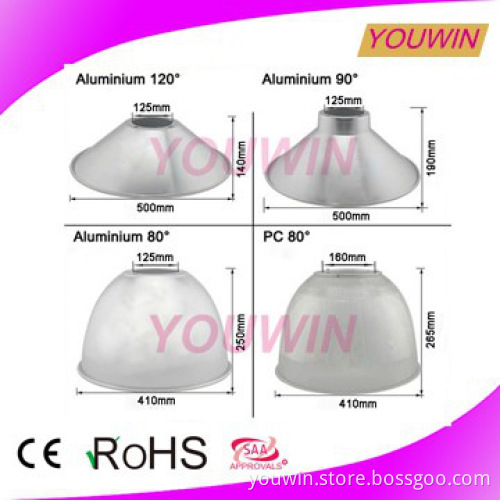

Package of saa led high bay
| Type | Dimension (cm) | Carton | |
| Lamp unit | 100-120w | L50*W31.5*H34.5 | 2pcs/ctn |
| 150-200w | L50*W31.5*H35.5 | 2pcs/ctn | |
| Lamp shade | Aluminium 80℃ | L48*W48*H44 | 20pcs/ctn |
| Aluminium 120℃ | L56*W56*H31 | 20pcs/ctn | |
| Aluminium 90℃ | L56*W56*H36 | 20pcs/ctn | |
| PC 80℃ | L48*W48*H52 | 10pcs/ctn |
SAA LED high bay trade & shipping method
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery
2. Delivery time: 5-7 days for MOQ 100pcs; 15 days for Container
3. Samples time: 1 days
4. Shipping terms: EXW Shenzhen
5. Discounts will be determined by quantity
6. Welcome distributors to cooperate together
Dailux Programe design
| Date for Dailux programe: 1. the area of the lighting zone (length and width) |
| 2. height of the light |
| 3. the request of the illumination (lux on the ground) |
installation of saa led high bay
Steps:
1.Installation lamp shade: Firstly loose the screws ①②③④,set the lamp shade hole ③④⑤⑥correspondingly to the four screws, then spin the lamp shade anticlockwise to assure it, tighten the bolts finally; ( as Pic. 1 )
2. Installation hook: Screw the hook into hole clockwise ①( as Pic. 2 )
3. Installation the protection screw: Screw M4*16 into hole ②, assure tighten it well. ( as Pic. 3 )
4. Installation lamp: Suspend the lamp under hook or chain, and install the other device with safety rope hanging.( as Pic. 4 )
Note: Bearing (hooks or chains) must be less than the length of the safety rope, safety rope length must be less than the length of the power cord.
Certification of SAA led high bay
1. CE RoHS Approved comply with EU standard CRI>80
2. SAA Approved with Australia market.
3. SASO Approved with United Arab Emirates & Saudi Arabia
YOUWIN TEAM focus on saa led high bay
| Advantage:Why choose YOUWIN? |
| 1.High Quality:We have strict quality control system .Good reputation in the market.We provide solutions not only products. |
| 2.Quick response:Well-trained and experienced staff will reply all of your enquires in fluent English in 1 hour.(10 hours between 23:00-09:00 the second day BeiJing Time) |
| 3.Good Service: We treat clients as friend.We responsibility to serve our clients best interests. |
| 4.Free Light study: We can do professional lighting design and perform ROI(Return Of Investment) calculation. |
| 5.Fast & Cheap Delivery: Discount price from Express company and forwarder. |
| 6.Certificates:We have certificates for different countires to help client expand the business easliy. |
| 7.Product Update:We can customized special products for you,and we keep on developing new products to meet market demand. |
| 8. We can supply C/O (Certificate of Origin), saving approx 20% import duty. |
YOUWIN service
1. Your inquiry related to our products or prices will be replied in 24hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM, any your customized lightings we can help you to design and put into product
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
Thanks for your time interview YOUWIN saa led high bay, pls kindly contact me freely, YOUWIN will pay highly attention.
Contact me ! Skype: youwin002
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% deposits before production, 70% balance to be paid before delivery. 1 days for sample, 7-10 days for bulk order. |
| FOB Port | Shenzhen, |
| Loading Info | By Sea, BY Air, By Express |
| Packing Info | Light Body:Carton size : L50*W31.5*H35.5 cm ( 2pcs/ctn)Net weight :10.6 KG/CTNGross weight :13.0KG/CTN |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
