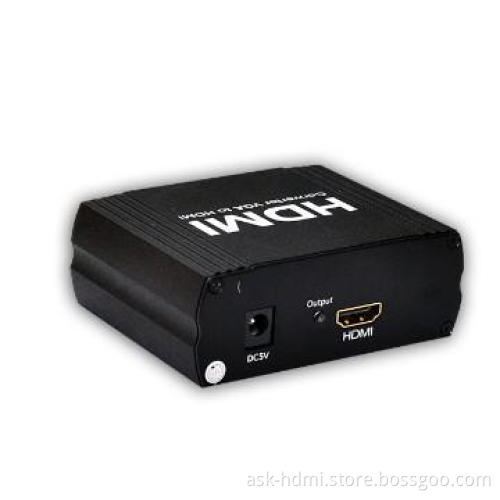

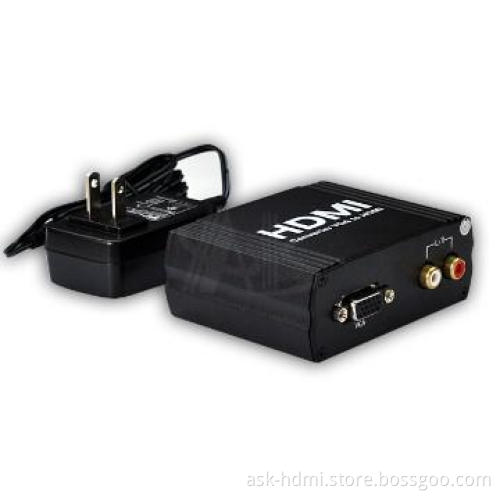

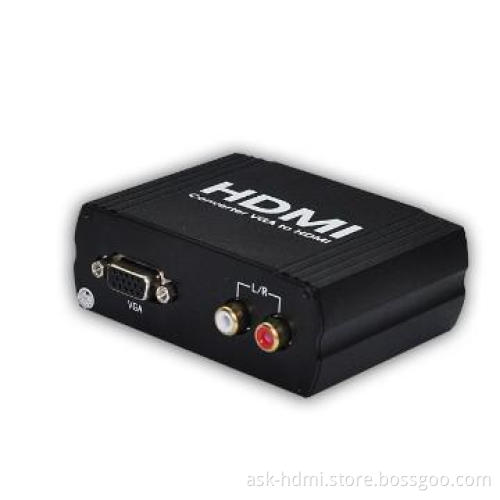

VGA+RL to HDMI converter box

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Color	black
Housing	Metal
Voltage	DC5V
Full HD 1080P	50/60Hz
Port	VGA to HDMI
Converting Type	Other
Output Frequency	1080p(50Hz/60Hz)
Video Starnard	Other

Detail Description

VGA+RL to HDMI converter box

FEATURES
l One VGA+R/L input signal convert to one HDMI 1.1 sink devices
l Support video input : VGA analog
l Support audio input : R/L analog
l HDMI output : Support up to 1280x1024, same format as input
l HDCP 1.1 protocol compliant
l Support CEC
l LED indication : when source or sink is working, LED relative to is light.
l Support output up to 20metres AWG26 cable length
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply

SPECIFICATIONS:                             HDCVGA0101
VGA Input…..……………………………………Support up to SXGA/SGA/UGA(50/60/75HZ)
Audio Input….…………………………………………………………………………..R/L Analog
HDMI resolution …………………………... Support up to 1280x1024, same format as input
Max transmission bandwidth…….………………….……………………………………5.1Gbps
Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TTL)
Output cable distance…………………………….…...≤20m AWG26 HDMI 1.3 standard cable
Max working current………………………………………………………………………...600mA
Power adapter format………….……Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………….……………90x70x33(mm)
Weight ………………………………………………………..………..……………………155g

Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1.  The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2.  All parts will be free from the strong shake, hit, fall.
3.  Touching the power adaptor with the wet hands is prohibited.
4.  Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5.  Pls turn the power off when the machine is not used for long time.
6.  Pls do not open the cover and do not touch the inside parts.
7.  Pls use the original factory power adaptor.

Additional Information

Payment Terms	L/C, T/T, Credit Card, Western Union, Paypal
Minimum Order	100pcs
Lead Time / Delivery Time	2 Day(s)
Sample Available	YES
Delivery Details	Stock ready, fast delivery3 days 100pcs7-15 days bulk 500-2000pcs
FOB Port	Shenzhen
Loading Info	Our own shipping agent, or up to you if you have shipping agency
Packing Info	Ask brand, Neutral, or up to your require, OEM/ODM
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
