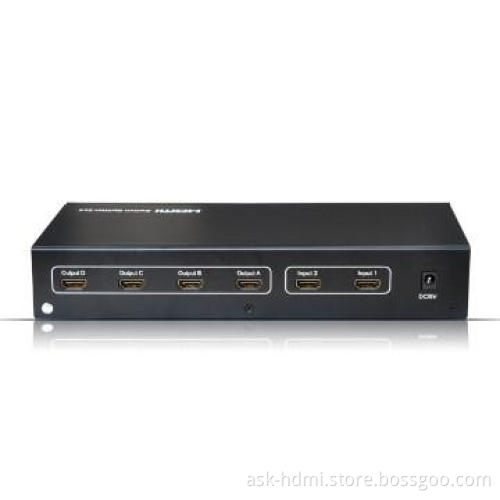

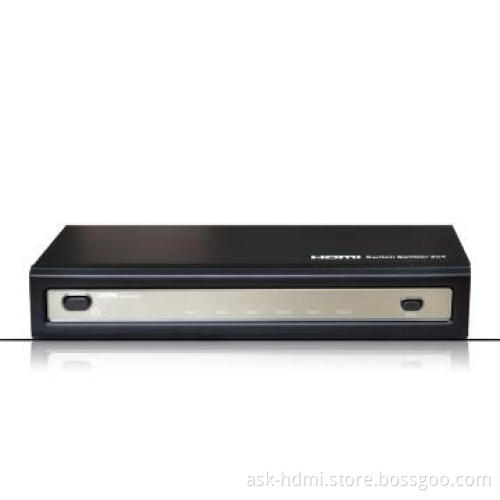

HDMI 2 in 4 out Switch Splitter

HDMI 2 in 4 out  Switch Splitter

FEATURES
l Two HDMI 1.3b input signal split to four HDMI 1.3b sink devices
l HDCP 1.2 protocol compliant
l Support CEC
l Support deep color 30bit, 36bit
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
output up to 25metres AWG26 cable length

SPECIFICATIONS: HMX-A5
HDMI version…………………………………………….………………………….… HDMI 1.3b
HDCP version…………………………………………………………………………....HDCP1.2
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit,36bit
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………….225MHz
Max baud rate…………………….………………….…………………………………..6.75Gbps
Input/Output TMDS signal ………….…………………………..…… …..0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ……………………….……………….………….≤15m HDMI AWG26
Output cable distance…………………………….…...≤25m AWG26 HDMI 1.3 standard cable
Max working current………………………………………………………………………... …….1A
Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
