1x8 HDMI Amplifier Splitter Support 3D / HDMI Splitter 1x8

1x8 HDMI Amplifier Splitter Support 3D / HDMI Splitter 1x8

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details
Patents

Basic Specification

color	black
case	metal
certificates	CE FCC ROHS
version	1.3
resolution	1080P

Detail Description

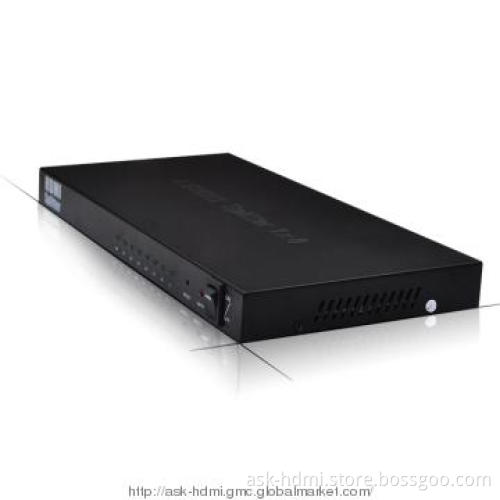

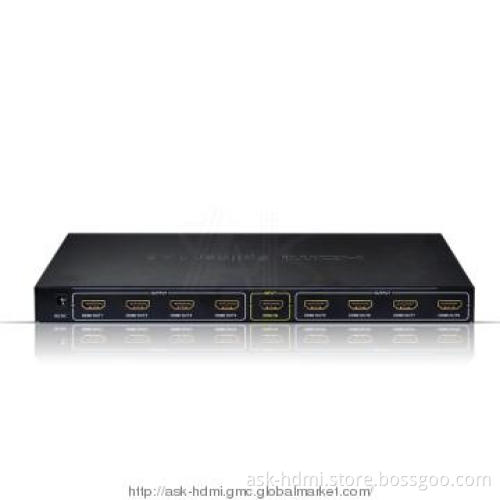

HDMI Splitter 1x8 1080p 3D

The 1x8 HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

FEATURES

1 One HDMI input signal split to four HDMI sink devices

2 Support Full HD, Full 3D

3 Support 1080 resolution

4 Support CEC

5 Support deep color 30bit, 36bit, 48bit

6 Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

7 Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)

8 Support signal retiming

9 Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length

10 No loss of quality

11 Installs in minutes

12 Need DC5V/3A power supply

Additional Information

Minimum Order	1
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	FOB ShenZhen
FOB Port	Shenzhen
Packing Info	Neutral gift boxwe can be up to your requiring , OEM ODM
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe

	Type	utility
Patentee	ShenZhen ASK Technology Co., Ltd.
Application Country	China
Application Code	ZL201120436729.5
Publication Code	CN202309948U
Application Date	2011-11-03T16:00:00Z
Publication Date	2012-07-03T16:00:00Z

The utility model discloses a multi -channel HDMI signal splitter, which includes a primary allocation module signal inputs, the input signal input terminal and the audio and video signal input interface connected to the input terminal and the output of primary distribution module 4 connected to the secondary distribution module , divided into 16 groups of four signal output interface, and power supply modules to each module , which interfaces with the set signal output terminal connected to the output of a secondary allocation module level distribution control terminal module and any secondary distribution modules are connected to an MCU control module and a switch control module.The utility model can be assigned to a high-definition signal source connected to the sixteen -definition display terminal.In addition, when it is connected to the signal output of an HDMI cable , HDMI signal can be amplified.Greatly facilitate the users with a broad market prospects.
