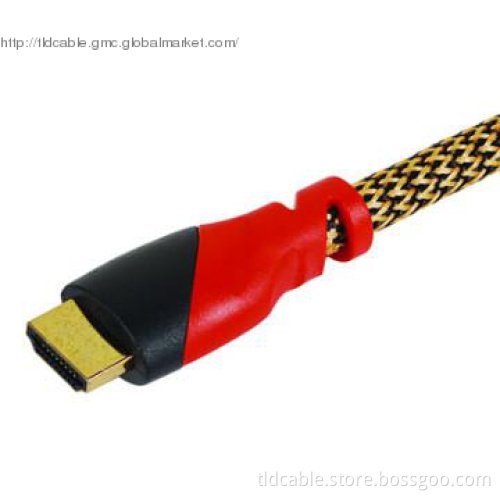

Dual color HDMI Cable with Nylon net gold plated

SPECIFICATIONS

Conductors

High purity Oxygen Free Copper

Insulation

Outer Jacket with protective nylon sleeve. (color optional)

Contacts

24K Gold Plated

Connectors

Metal shell type (optional)

Available lengths

3FT to 50FT ( 1m,1.8m,3m,5m,10m,15m ) optional

Available terminations

HDMI,19PIN,Male to Male, Version 1.4v, up to 1440P

Available gauge

24/26/28/30AWG(optional) OD:6.2/7.3/9.0mm

Certification

RoHS,UL,CE

Shielding

AL+ ML+ Braiding+ Ferrite

AWG

24/26/28/30

ELECTRICAL

Quality Control

operation according to regulations & rules in ISO9001:2008

Voltage

DC300V 5M ohm/10ms

Insulation Resistance

10M min

Contact Resistance

2 ohm max

Working Temperature

-25C-80C

Data transfer rate

10.2Gbps Max

Differential Impedance

100±10Ω(TDR)

FEATURES

1, Center conductor: high quality digital signal delivered by oxygen-free copper

2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.

3, Inner shield: Aluminum/Mylar foil shield, prevent high frequency noises and interference

4, Outer shield:95% copper braid shield, prevents most low frequency noises and interference.

5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.

6, High density triple shielding for maximum rejection of EMI and RFI

7, Transfer speed: 10.5Gbps

8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance

9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chrome

PACKING

A: Bubble blister is your first choice to make your prodcts attractive

B: Premium Slide Blister is competitive in price but catch customer\'s eyes

C: Gift box packing to make your products more environmental

D: Poly bag with card header and barcode number is low cost but good looking

E. Customer\'s designs are available by request

Applications

1.digital TV

2.Plasma display

3.LCD display

4.DVD player/repeater

5.Audio/video receiver

6.Home video system

7.Satellite system
