Basic Specification
| Wattage | 20W |
|---|---|
| Color | White/warm whtie |
| Life | 50000Hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Power | 20W |
| Voltage | 90-260V |
| Illuminant | SMD |
| Color Tones | Pure White |
Detail Description
LED type 3014SMD LED 20W
1. Material: Aluminum base and PC cover
2. Input Voltage AC90-260V
3. Frequency 50/60Hz
4. LED Quantity: 144PCS SMD3014
5. LED Luminous efficiency: 90LM/W
Luminous flux(LM): 1900LM
6. CT: 6000-8000K/2800-3500K
7. Dimension: 26mm*L1200mm
8. Beam Angle: 120
9. Colour rendering index: >70Ra (White)
Colour rendering index: >75Ra (warm White
10. Life Span: 50, 000H
11. Environment temperature: -20 ~ +40 dgree-
Material: Aluminum base and PC cover Environment temperature: -20 ~ +40 LED Quantity: 144 SMD3014 Environment Humidity: < 95% LED Luminous efficiency: 90LM/W Colour rendering index: > 70Ra (White) Input Voltage: AC85-265V Colour rendering index: > 75Ra (warm White) Luminous flux(LM): 1900LM Life Span: 50, 000H Work frequency: 50-60HZ Beam Angle: 120° CT: 6000-8000K/2800-3500K Dimension: 26mm*L1200mm Power: 20W Base: T8 SMD3014 LED Tube with CE/RoHS certificate

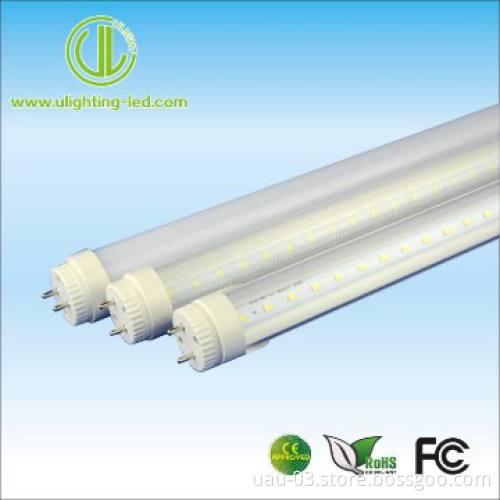

Description
This led tube with 144pcs super bright 3014 smd led. The luminous flux can reach 2000lm,
The material is aluminium alloy and pc cover( transparent and frosted) and dimension is
D26×1199 mm(T8×4ft.).
CE, RoHs are approved for this series of led tubes.
Features:
1. Super bright:with 144 pcs super bright 3014 smd led.
2. Energy saving: with high efficiency constant current driver, saving 80% energy compare with
traditional tube.
3. Long lifetime, can reach 30,000 hours.
4. High weather ability.
5. Easy installation, don’t use ballast resistor and starter.
6. Eco-friendly, no heavy metal and harmful gas.
7. No flicker.
Product Specifications:
Item Value LED Type 20W 2000lm t8 led tube (CE/RoHS) Item No. T8-120CM-144X3014 LED Source SMD3014 LED quantity 144pcs Power 18w Voltage AC86-265V Dimension D26×1199 mm(T8×4ft.) Beam Angle 120 ° Working Temperature -40~45°C Color Temperature white, warm white IP Rate IP44 Power Factor >0.90 Tube material aluminium alloy and pc cover( transparent and frosted) Lifespan 50,000hours Wanrranty 3 years Certificate CE, RoHs approved
Package Paper tube Dimension Drawing:
Connection Menthods
Test Report:
Applications:
1, Living room, bedroom, washroom
2, School, office, hospital
3, Factory, plant, warehouse
4, Supermarket
5, Emergency lighting
6, Display case lighting
7, Bus, shuttle, rail car, etc
Production Line Show
Our Service and Promises.
1.Your inquiry will be promptly replied in 12 hours time.
2.Well-trained and experienced staffs to answer your inquires in fluent English.
3.OEM&ODM acceptable
4.Free design accordingly to customer\'s demand.
5.Protection of your sales area, ideas of design and all your private information.
6.Any defective products within warranty will get maintenance or replacement unconditionally.
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 20pcs |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | delivery with full payment |
| FOB Port | Shenzhen |
| Loading Info | airway, express, seaway |
| Packing Info | 25pieces/carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
