Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Input Voltage DC12V (or DC24V)
LED Type SMD5050
LED Q\'ty 30LED/m (or 60LED/m, 120LED/m)
Color Warm White
IP Rate IP33 (or IP65/67/68)
Voltage 12V
Light Source LED
Colour Warm white

Detail Description

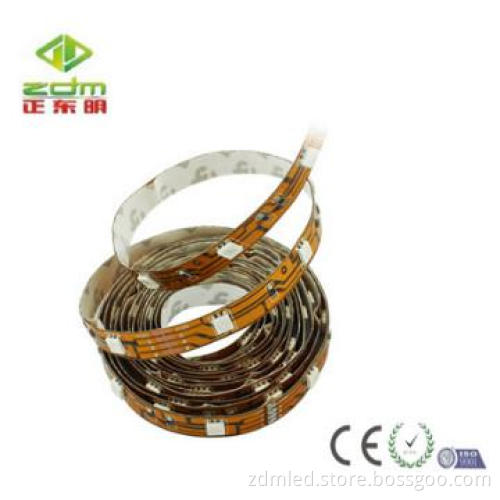

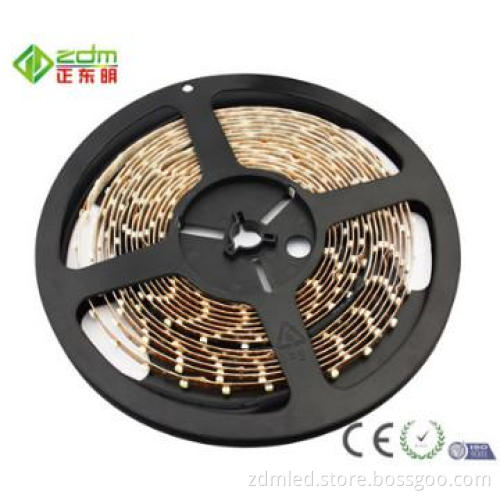

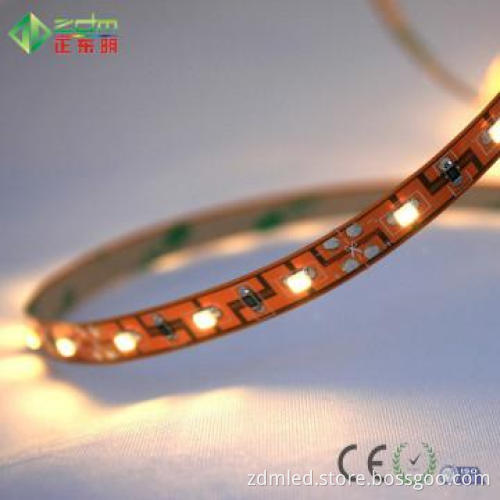

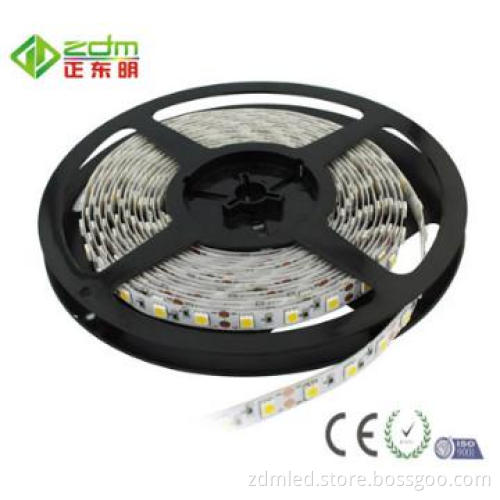

Nonwaterproof SMD5050 LED Strip Light 30L/M Warm White
Item No.: ZDM-LSL5050-WPG30-12WW


Product Specifications:
1. LED Source: SMD5050
2. LED Qyt: 30PCS/meter, 150PCS/roll
3. Work Voltage: DC12V
4. Power Rate: 7.2W/m, 36W/roll
5. Color available: Warm white (R/G/B/Y/W/WW/CW, etc. )
6. Beam Angle: 120°
7. Working Temperature: -20° C ~ +45° C
8. Dimension: 5000*10*1.7mm per reel
9. IP rate: IP33 (Non waterproof)
10. Lifespan: >50, 000hrs
11. Certifications: CE & RoHS
12. Warranty: 2 years

Product Features:
1. TOP5050 LED packaged, single color package, high brightness, low lumen decay, full colors optional (R/G/B/Y/W/WW/CW/RGB, ...)
2. The strips can be curved into any shape, flexible for installation
3. DC12V low voltage driver safe for appliaction, with 3M adhesive tape for mounting
4. Ultra small size, 5000*10mm or 5000*8mm, each roll packaged in aluminum bag
5. Every 3 LEDs as a group, cutable each group, easy to be used for different aplication
6. Low power-consumption, long working hours, maintainance free
7. Silicone tube with high light transmittance, IP65 IP67 IP68 selectable.

Packing Details:
Carton Size: L46*W37*H28(cm)
Packing: 80reels/carton (SMD3528)
60reels/carton (SMD5050)

Application:
Suitable for decorating outline or contour of KTV, shopping malls, corner cabinets, cove lighitng, etc.

Physical Characteristics
Dimension 5000*10*1.7mm, 5m/roll
LED qty. 30pcs/meter, 150pcs per roll
FPCB color yellow, black, white selectable
IP rate IP33 Waterproof (or IP65, IP67/68 optional)
Lifespan > 50, 000Hrs
Certification CE & ROHS
Electrical Characteristics
Input Voltage DC12V
Power rate 7.2W/m
Photometric Characteristics
Light Source SMD5050
Color available Warm white (2700~3200K)
Beam Angle 120°
Operating Temperature -20~45° C
Application Home lighting decoration, Corridor lighting, cabinet lighting, back lighting, cove lighting, etc.

Additional Information

Payment Terms L/C, T/T, Others
Minimum Order 1000meter
Lead Time / Delivery Time 12 Day(s)
Sample Available YES
Delivery Details 30% advance payment, rest paid before shipment or against B/L copy
FOB Port Shenzhen
Loading Info By Sea, Air, DHL, FedEx, etc.
Packing Info Carton Size: L46*W37*H28(cm)Packing: 80reels/carton (SMD3528)60reels/carton (SMD5050)
Target Market(s) Eastern Europe, Latin America, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
