4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
  • 4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
  • 4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
  • 4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
  • 4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS
4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS

4Ft T8 LED Fluorescent Tube 18W 100LM/W 6000~6500K PF>0.95 CE RoHS

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Lumen 1800~1900lm
Input Voltage AC 85~265V
Power Rate 18W
LED Type SMD2835
CCT 6000~6500K (Pure White)
Life 50,000hrs
Length 120cm
Lamp Base G13
Color Tones Pure White
Tube Diameter T8
Voltage 90-260V
Shape Straight
Power 18W

Detail Description

4Ft T8 LED Fluorescent Tube T8 LED Lamp 18W 100-110LM/W Pure White 6000~6500K CE RoHS​ FCC PSE Pass With 3-Year Warranty
Item No.: ZDM-T8-120CM-120M-SP


Product Specification

Physical Characteristics
Dimension Φ26*1198mm, 4feet T8 LED Tube
LED qty. 120pcs
Socket Type G13 socket
Tube housing Half AL + Half PC Shell (Milky/Stripe/Clear), elliptic shape
Lifespan >50,000Hrs
Certification CE, RoHS, FCC, PSE
Electrical Characteristics
Input Voltage AC 85~265V
Lamp Wattage 18W
Power Factor 0.90
Frequency 50/60HZ
Photometric Characteristics
Light Source SMD2835, High Brightness LED Chip
Lumen Output 1800~1900LM
Energy rating Level A
Color Temperature 5500~6500K (Pure White)
Beam Angle 140°
Color Rendering Index >70
Light transmittance 92%
Operating Temperature -40~45° C



Product Features
1> Long Lifespan: work time over 50,000hours
2> High Efficiency: 70~80% energy-saving more than traditional fluorescents
3> No Flicker: Eliminate eye strain and headaches associated with fluorescents lighting
4> Shatter-proof design: Solid-state light source with aluminum holder, not easy to be broken
5> Environmental Friendly: No mercury and other hazardous materials, fully RoHS compliant
6> No RF Interference: Perfect for lighting in place where precise instruments can be disturbed by fluorescent lamp
7> Instant Power on/off design: Isolated constant current power driver, ensure instant power on/off and provide stable power supply special power-supply design
8> Easy for transportation and installation, maintenance free

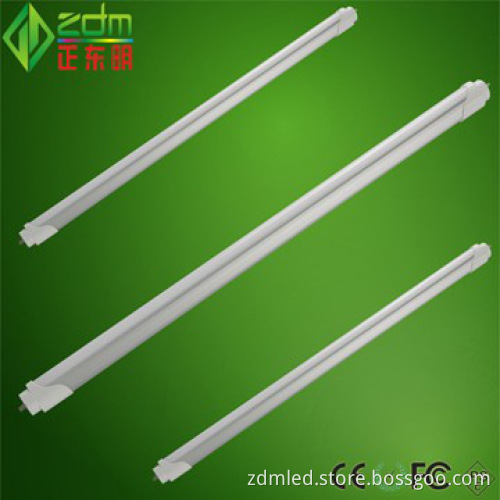

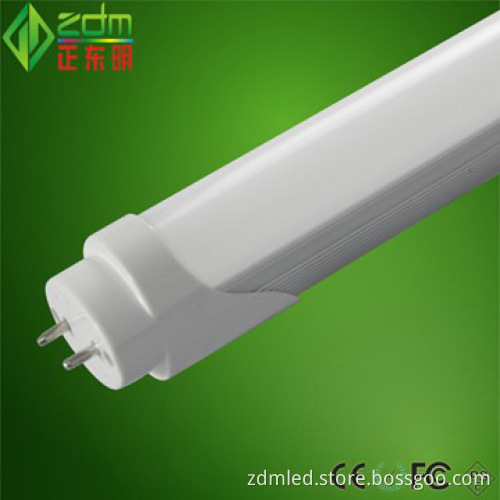

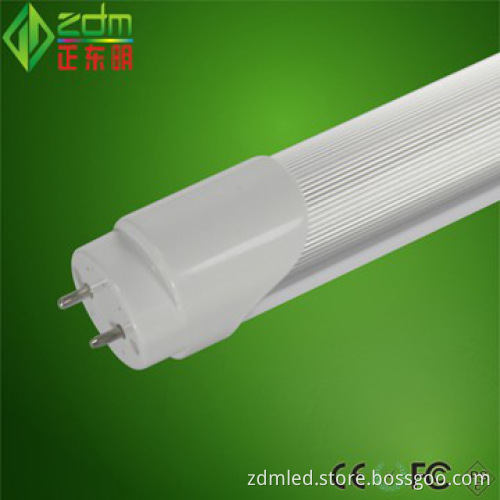

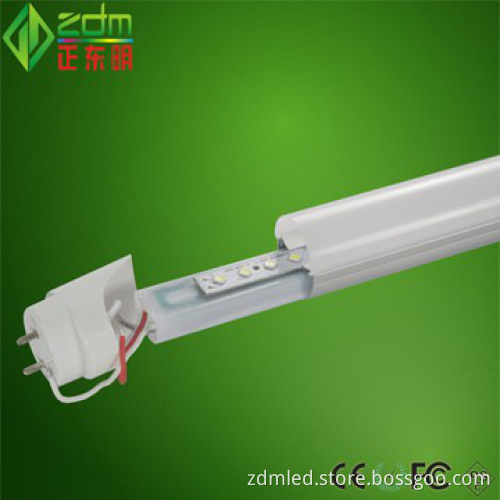

Product Preview










Packing Details
Outer packing: Packaged in carton box, 1260*230*250mm(L*W*H), 22.0kg/carton, 35PCS/carton.


T8 LED Tube Dimension Chart



Instruction of how to replace T8 fluorescent tube with a T8 LED Tube



Color Temperature Comparison



Advantage of LED Tube compared with Fluorescent Tube



Production Overview





T8 LED Tube Packing



Application
For lighting in office, factory, supermarket, school, home, garage, subway, and other commercial lighting application.



Certificates Available for Now





Factory Overview

Additional Information

Payment Terms L/C, T/T, Others
Minimum Order 100pcs
Lead Time / Delivery Time 12 Day(s)
Sample Available YES
Delivery Details By Sea, Air, DHL, FedEx, etc
FOB Port Shenzhen
Loading Info FOB Shenzhen, or Ex Work basis
Packing Info Outer packing: Packaged in carton box, 1260*230*250mm(L*W*H), 22.0kg/carton, 35PCS/carton.
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Middle East
