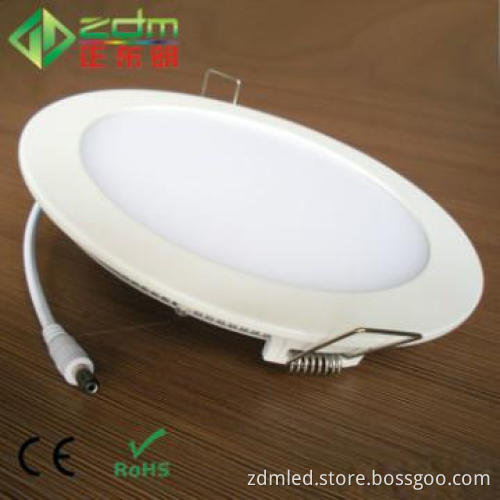

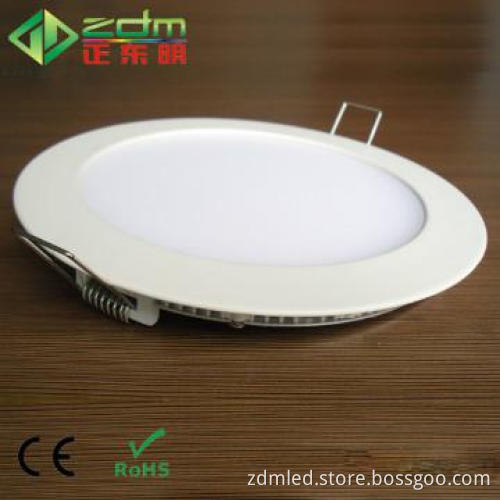

Round LED Lighting Panel Φ140MM 8W 420~440LM NW 4000-4500K

Round LED Lighting Panel Φ140MM 8W 420~440LM NW 4000-4500K
Item No.: ZDM-PY-140-001

Product Specifications
1) Light Source: SMD2835 LED
2) Dimension: Φ140*13mm (D*H)
3) LED Qty: 45PCS
4) Power Rate: 8W
5) Input voltage: AC 85~265V
6) Color available: White 6000±500K, Warm White (3000±500K)
7) Lumen flux: 420~440LM
8) Color Rendering Index: Ra≥ 75
9) Beam Angle: 120°
10) Housing material: Aluminum + PMMA lens
11) Lifespan: >50,000hrs
12) Warranty: 2 Years
13) CE & RoHS approved
14) IP rating: IP54 indoor use

Product Features
1. Energy Saving. Saving 60%-70% electricity cost to traditional Panels
2. Super bright SMD LED, high luminous intensity and efficiency
3. No UV or IR radiation in the beam, mercury free; No noise, no flickering, instant power on & no warm up time required
4. Professional thermal management design, low heat emission
5. Using compact aluminum material with PVC panel cover, anti-shock, anti-moisture
6. Exquisite small appearance, easy to install with mounting brackets
7. CE & RoHS approval, work time over 50000hrs.

Installation: support 3 ways, recessed, slung & suspended installation ways

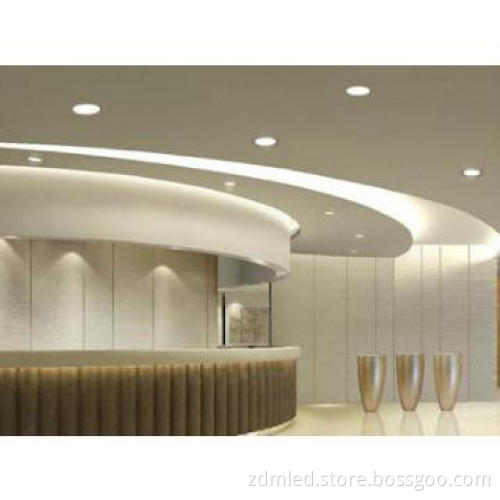

Applications
The LED panel light is ideal replacement for the traditional downlights, it has wide range of application such as:
1. Jewelry counter lighting
2. Commercial lighting
3. Restaurant, hotel
4. Artwork lighting
5. Display case
6. Amusement park
7. Home and office lighting

Packing details
Lined with EPE holder for inner box, and 4 boxes in an outer carton



LED Type	45pcs LEDs (SMD2835)
Power Rate	8W
Color Temperature	White 6000±500K, Warm White 3000±500K
Luminous Flux	420~440LM
Color available	warm white, pure white, cool white
Dimension	Φ140*13mm (D*H)
Beam Angle	>120°
CRI	>75 (Typically 75.6-76.8)
Power Factor	>0.95
Input Voltage	AC 85~265V
Frequency Range	50~60Hz
Material of Body	Aluminum alloy frame & PMMA cover
IP rating	IP54 (indoor use)
Operating Temperature	-20 ~ 65 degrees Celsius
Net Weight	250±10%g
Dimmable Feature	Optional
Life Span	>50,000hours
Warranty	2-year
