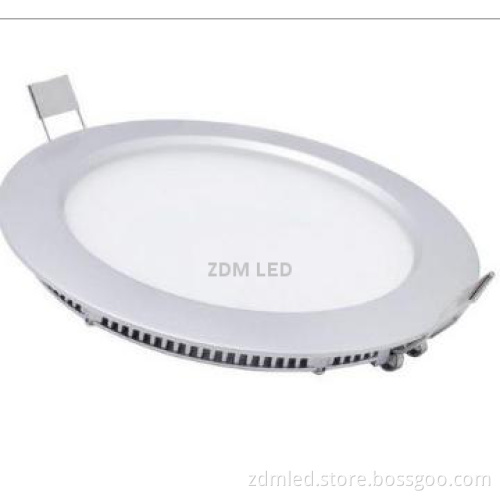

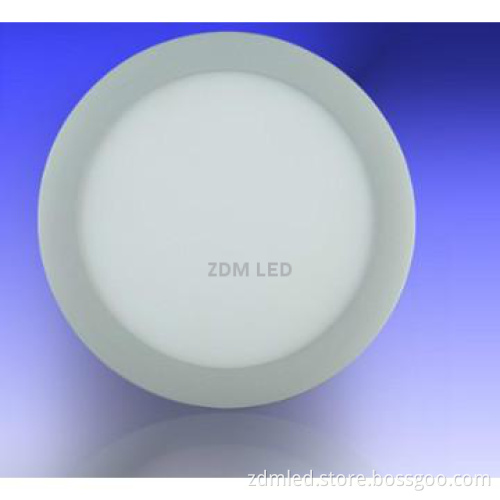

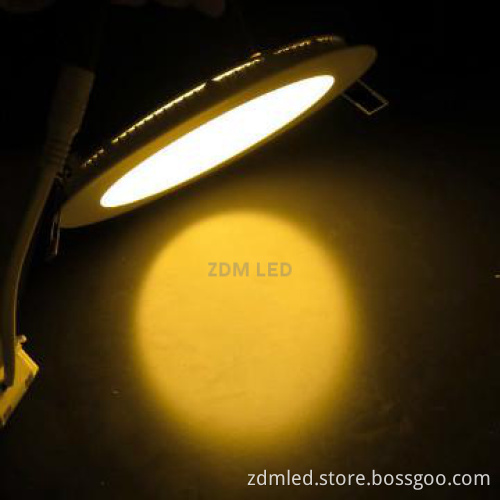

fashion led flat panel light used in supermarket

fashion led flat panel light used in supermarket
specification
Modle No:ZDM-PY-140-001
chip:epistar
size:Φ140*13mm
Power:9W
Luminous Flux:350-420LM
Input Valtage(AC):AC 100-240V
Frequency Range:50~60HZ
color: white,warm white,cool white,RGB
CRI:≥72
Beam Angle:120°
Power Factor:≥0.95
Lifespan:>50000Hrs
Material of Body:Die casting aluminum frame and PMMA lampcover
harmonic wave:≤15%
insulation resistance:4MΩ
Operating Temperature:Negative 20 to 45 degrees Celsius
endurance voltage:>3000v
Dimmable Feature:Optional
protection level:IP54
weight of 1 pcs of led panel light:185g/box
weight of 1 carton of led panel light:4.9kg/carton


Highlights
1,produce super bright SMD LED,high luminous intensity and efficiency
2,Industry\'s leading luminous efficiency,Top ranking in China.
3,Super Longlife designed driver ,MTBF estimated at 60,000 hours, CE & ROHS Listed
5,Super high light transmit shell distribute uniformed light.
6,Leading heat management,low termperature increase,largely increase the lifetime
7,2-3 years warranty available for option and lifetime cost price mantaince and care for sure
8,Manufacturer directly and massive production volume, guarantee lowest price for same quality

Features
1,Energy Saving. Saving 55%-70% electricity cost to traditional Panels.
2,Advanced super longlife and stable driver.
3,Professional thermal management.
4, Instant on, no warm up time required.
5,No noise, no flickering.
6, No UV or IR radiation in the beam, mercury free.
7,Anti-shock, anti-moisture.
8,Die casting aluminum frame and leading light transmitting Optical PMMA cover.
9, Exquisite small appearance. Easy to install with mounting brackets.
10,Eco-friendly. No mercury and other harmful materials.
11,No delay on start.
12, Long life span, longer than 50,000H

installation
1，open hole according round led panel size
2,cuff off power,then join the power supply line and led panel light line.
3,install led panel light in the hole and fix panel light by spring .
4,clear dust of lamp surface .
5,turn on switch and observe that lamp work or not before ensure right lamp rated voltage .

notice
1,led panel light only apply indoor ,IP54.
2, To avoid electric shock,please cut off power before installation .
3, To avoid scratch or damage lamp,do not squeeze lamp hard when install it .
4,please do not apply lamp in insecureenviroment such as flammable,explosive,high temperature corrosion.
5,please  let professional to repair lamp when something wrong with it.
