Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Tube Diameter available t5,t8,t9,t10
Base Type G13
name 4ft led tube
length 2feet,3feet,4feet,5feet
new item high technology 4000-4500k beam angle 120degree 4
Light Source LED
Tube Diameter T8

Detail Description

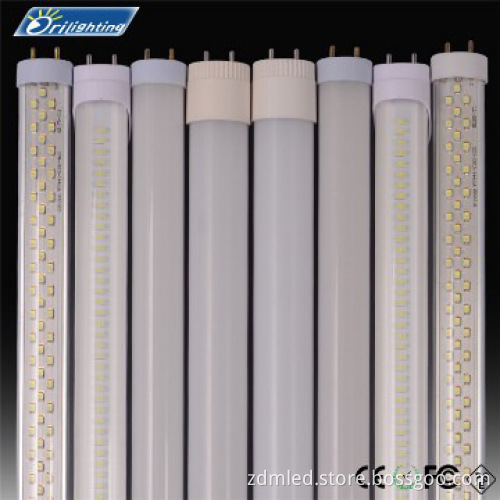

high technology 4000-4500k  beam angle 120degree 4ft led tube


Defferent  technical parameters of 4ft led tube
Non integrationT8 LED tubes with isolated driver Series
Size Power LED quantity Lumen packing
Φ26*L600mm 10W  60 pcs  700-800lm(milky lampcover);900-1000lm(transparent lampcover)    70pcs led tube in 1 carton,carton size:L660*W230*H290mm
Φ26*L900mm 15W  90 pcs 1100-1200lm(milky lampcover);1500-1600lm(transparent lampcover)      35pcs led tube in 1 carton,carton size:L960*W230*H290mm
Φ26*L1200mm  18W  120 pcs 1500-1600lm(milky lampcover);1800-1900lm(transparent lampcover)     35pcs led tube in 1 carton,carton size:L1260*W230*H290mm
Integration 4ft led tube with isolated driver Series
Size Power LED quantity Lumen packing
Φ26*L600mm      10W   60 pcs  700-800lm(milky lampcover);900-1000lm(transparent lampcover)    70pcs led tube in 1 carton,carton size:L660*W230*H290mm
Φ26*L900mm    15W   90pcs  1100-1200lm(milky lampcover);1500-1600lm(transparent lampcover)      35pcs led tube in 1 carton,carton size:L960*W230*H290mm
Φ26*L1200mm  18W   120pcs 1500-1600lm(milky lampcover);1800-1900lm(transparent lampcover)     35pcs led tube in 1 carton,carton size:L1260*W230*H290mm

Same technical parameters of 4ft led tube
Material aluminium+PC cover
Input voltage AC85-265V
Frequency Range 50~60HZ
Fixture Efficiency   88%
Power Factor ≥0.95
lampcover available    transparent,milky
color temperature avaiable warm white2800-3300K,natural white 4000-4500k,pure white6000-6500K,cool white7000-8000k
beam angle 120degree
CRI ≥72Ra
Light Source SMD2835
Operating Temperature    Negative 20 to 55 degrees Celsius
Life Span over 100,000hours
Iner packing        strong cardboard tube.outer packing is carton
cross section of structure oval shape

4ft led tube highpoints
1.Product structure
Module structural design which is more conveniently for maintenance and replacement

2.Top quality PC cover
For our led tube, both transparent and milky covers are available. For milky cover, when lighten the tube, LEDS are invisible. Namely, light effect is very even and same as traditional fluorescent light. We realized 100% perfect replacement.

3.Great Lighting source
The chip of led tube is of high quality and bigger size, 10*23 chip, which is from Epistar in Taiwan. It can resist higher anti-static and distribute more brightness.

4.Low light attenuation
The white light is adopting new technology, less than 3% in 1000hrs, however, the
traditional attenuation of white color at least 30%.

light intensity of 4ft led tube can not avoid.But we control it well.
1,best quality PCB,heat transmitting coefficient is 1.5.
2,led current can control in safe scope.
3,use constant current driver.
4,high quality half AL and half PC structure is good for heat dispersion
5,Use best chip and SMD production independently.

smd 2835 led tube latest item





smd 2835 led tube easy installation





4ft led tube strict production



4ft led tube true certification




4ft led tube best  service


4ft led tube company view(warmly welcome to visit our factory at any time ,call Amy 008615889632948,skype:ZDM.sales01)



4ft led tube HK&canton lighting fairs

Additional Information

Payment Terms L/C, T/T, Western Union, Money Order, Paypal, Others
Minimum Order 10PCS
Lead Time / Delivery Time 3 Day(s)
Sample Available YES
Delivery Details high technology 4000-4500k beam angle 120degree 4ft led tube,sample leap time:3 days;mass production:5-7days.
FOB Port Shenzhen
Loading Info high technology 4000-4500k beam angle 120degree 4ft led tube,by express/sea/air
Packing Info high technology 4000-4500k beam angle 120degree 4ft led tube,35pcs led tube in 1 carton,carton size:L1260*W230*H290mm
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
