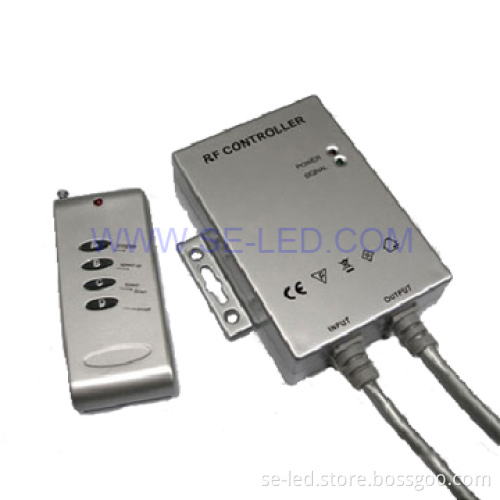

Waterproof Aluminum Full Color Remote 4Key LED Controller

RF Waterproof LED Controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, Waterproof LED Controller has many advantages such as convenient connection, simplicity to use and others. According to the actual needs of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.

Parameter:
Working Temperature: -20^oC~60^oC
Supply Voltage: DC5V, 6V, 12V, 24V optional
Output: 3 Channels
Connecting Mode: Common Anode
Launch Reception Frequency: 433.92MHz
External Dimension: L96*W66*H26mm
Packing Size: L145*W95*H50mm
Net Weight: 170g
Gross Weight: 200g
Static Power Consumption<1W
Output Current<4A (each Channel)
Output Power: 5V<60W, 12V<144W, 24V<288W

Direction for use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.
2. Adopt RF for controlling, there are four buttons altogether, and every key-press function is as follows:
       Program: a pattern key, lighting color will change one if you press one time;
       Speed up: to speed up lighting color changing;
       Speed down: to speed down lighting color changing;
       On/off: Power switch, you could turn on/off controller in any state.
3. Standard color change as follows:
