ONVIF 2.0 1 Megapixel Low-lux IP Module
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Sensor | 1 megapixel 1/4 |
|---|
Detail Description

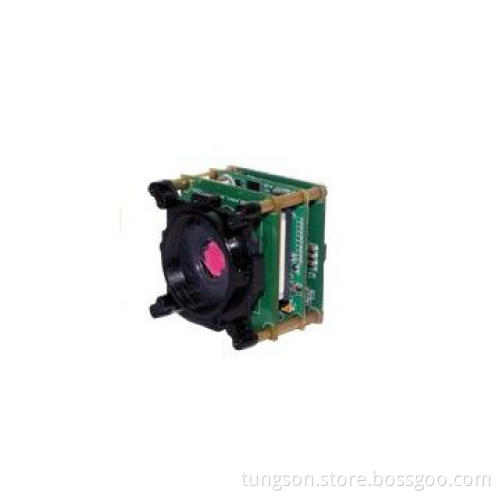

1 Megapixel Low-lux Network HD Module
TE-IP31
High IPC-specific modules, to facilitate a variety of housing
mounting, integrated dual Filter switches, sensors, encoders,
transmission. Provided free of charge TE unified client, video /
preview / playback, provide high stability Requirements of
customers embedded NVR and PC architecture LINUX System
NVR. For RMON / unified management system provides the
management platform.
Technical parameters
TE-IP31
High IPC-specific modules, to facilitate a variety of housing
mounting, integrated dual Filter switches, sensors, encoders,
transmission. Provided free of charge TE unified client, video /
preview / playback, provide high stability Requirements of
customers embedded NVR and PC architecture LINUX System
NVR. For RMON / unified management system provides the
management platform.
Technical parameters
| Model | TE-IP31 |
| System Architecture | Embedded RTOS design, dual-core 32-bit DSP (TI Da Vinci DM365), pure hard compression, watchdog, 32M FLASH, 128M DDR2 |
| Image Sensor | 1 megapixel 1/4 \"CMOS sensor; support switching filters, day and night, a sense infrared photoresistor signal linkage, CS mount lens (optional M12/M14); Color 1 Lux _AT_ F1.2, black and white 0. 1 Lux @F1.2 |
| Resolution | Main Stream: 1280×720（Recording Resolution）; Sub-stream: 640×360, 480×270, 320×180 |
| Frame Rate | Less then 1 megapixel are 25 Frames |
| Video Processing |
H.264 Video encoding, support dual-stream AVI format, code stream 500Kpbs ~ 8Mpbs; frame rate to 25 frames / sec adjustable |
| Audio Processing | NO |
| Network Interface | 1 RJ45 10/100M adaptive Ethernet interface |
| Network Interface | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF etc network protocol |
| Audio Interface | NO |
| USB Interface | NO |
| TF Interface | NO |
| Auto Iris Interface | 1 auto iris interface, support DC drive auto iris lens |
| Photoresistor Port | 1 photoresistor interface, support photoresistor input signal and image, IR-CUT, infrared lamps linkage |
| LED Control Port | 1 infrared lamp control interface, support for algorithms to control infrared lights turned on and off |
| PTZ Interface | NO |
| Alarm Interface | NO |
| Analog Output | NO |
| Functions | Motion detection alarm / linkage of storage, the OSD, unified client remote monitoring software (TE) phone client application functions, POE power and centralized power scalable. |
| Others | DC 12V power input interface, 3W power consumption, size 38 * 38 * 33mm, about 0.2Kg, without housing, two board structure. |
| Remark |
5 Megapixel = 2592*1920, 3 Megapixel = 2048*1536, 2 Megapixel = 1920*1080 or 1600*1200 1.3 Megapixel = 1280*960, 1 Megapixel = 1280*720 |
Afale Services:
All our products have 2 year warranty, And we sure the product will be free from maintenance within warranty period.
Welcome email us asking for the whole price list,we will give you the best service.
Additional Information
| Payment Terms | L/C, T/T, Western Union, Money Order, Paypal |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | charged sample. Delivery before receive the receipt of payment. |
| FOB Port | Shenzhen |
| Loading Info | DHL.UPS.Fedex or shipping by sea |
| Packing Info | carton box |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
