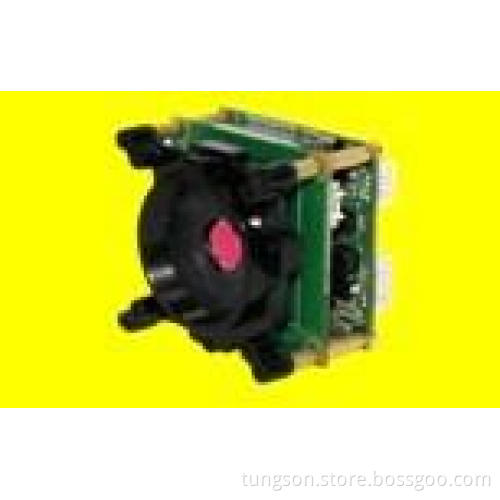

Ultra-low-lux Network HD 1.3 Megapixel Module
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
Detail Description
| Model | TE-IP61 |
| System Architecture | Embedded RTOS design, dual-core 32-bit DSP (TI Da Vinci DM365), pure hard compression, watchdog, 32M FLASH, 128M DDR2 |
| Image Sensor | 1.3 megapixel 1/3 \"CMOS sensor; support switching filters, day and night, a sense infrared photoresistor signal linkage, CS mount lens (optional M12/M14); Color 0.1Lux _AT_ F1.2, black and white 0.01 Lux @F1.2 |
| Resolution | Main Stream: 1280×960,1024×768 1280×720 Sub-stream: 960×540,640×360,480×270, 352×288,320×240,352×192,320×192,288×192, 256×192 |
| Frame Rate | 1.3 megapixel And below are 25 Frames (real-time image) |
| Video Processing | H.264 Video encoding, support dual-stream AVI format, code stream 500Kpbs ~ 8Mpbs; frame rate to 25 frames / sec adjustable |
| Audio Processing | NO |
| Network Interface | 1 RJ45 10/100M adaptive Ethernet interface |
| Network Unctions | RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP / ONVIF etc network protocol |
| Audio Interface | NO |
| USB Interface | A USB interface, support maximum 64G U disk connection, support front-end storage |
| TF Interface | NO |
| Auto Iris Interface | NO |
| Photoresistor Port | 1 photoresistor interface, support photoresistor input signal and image, IR-CUT, infrared lamps linkage |
| LED Control Port | 1 infrared lamp control interface, support for algorithms to control infrared lights turned on and off |
| PTZ Interface | NO |
| Alarm Interface | NO |
| Analog Output | An analog video output, support CVBS standard, PAL / NTSC optional |
| Functions | Motion detection alarm / linkage of storage, the OSD, unified client remote monitoring software (TE) phone client application functions, POE power and centralized power scalable. |
| Others | DC 12V power input interface, 3W power consumption, size 38 * 38 * 33mm, about 0.2Kg, without housing, TE-IP61 is 38 two board structure, TE-IP62 is 38 three board structure. |
| Remark | 5 Megapixel = 2592*1920, 3 Megapixel = 2048*1536, 2 Megapixel = 1920*1080 or 1600*1200 1.3 Megapixel = 1280*960, 1 Megapixel = 1280*720 |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 5 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | According to clients\'requirement |
| FOB Port | Shenzhen |
| Loading Info | According to clients\'requirement |
| Packing Info | neutral packing |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
