Basic Specification
| lumen | 2700 |
|---|---|
| Input voltage | 100-240v |
| warranty | 3years |
| Light Source | LED |
| IP | IP65 |
| Material | Aluminum, Aluminum Die Casting |
| Voltage | 90-260V |
Detail Description
Part Number: HD-IW-W150A-A00C

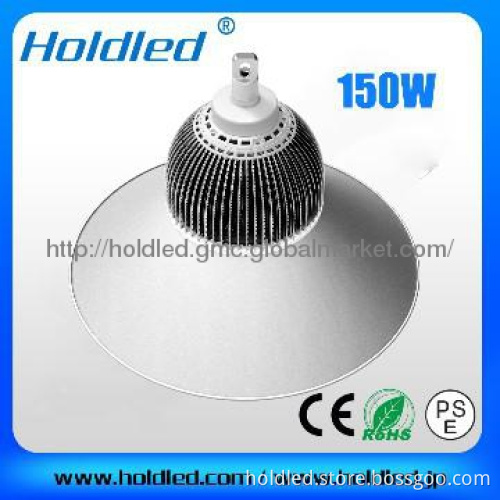

150W led high bay light
Part Numbers Note:
| Part Number | Description |
| HD-IW-X150A-A00C | 15PCS 10W Epistarchip LED, AC100~240V ,120 degree,Clear Lens+ Aluminum fins |
Note: X: W mean Natural White(CW) CCT: 5600-7000K (2 grade:5600-6300k, 6300-7000k)
T mean Daylight (PW) CCT: 3800-4500K (2 grade:3800-4000k, 4000-4500k)
L mean Warm White(WW) CCT: 2700-3500K (2 grade:2700-3000k, 3000-3500k)
Technical Specifications:
| Item | Specifications | Parameter |
| Electrical | Input Voltage | AC100-240V |
| Power Consumption | 150±10%W | |
| Power Factor | > 0.9 |
|
| Frequency Scope | 50/60Hz | |
| Operating Temperature | -20~50°C | |
| Waterproof grade | IP65 | |
| Photometric | Socket type | 3X0.75mm² Line |
| Work Environment | indoor use | |
| Lighting Source | Epistar chip LED | |
| Beam Angle | 120° | |
| Life span | >35000h | |
| Led qty | 15pcs10W LED | |
| Dimension | Dimension | C*H =570*430mm |
| Net Weight (1pcs) | 4.2KG |
| Part Number |
Lumens (LM) |
Illuminance(lux) | CRI | CCT | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||||
| HD-IW-W100A-A00C | 13500±10% | 4500 | 1600 | 780 | 505 | 401 | 203 | ≥70a | 5600- 7000K |
| HD-IW-T100A-A00C | 13000±10% | 3900 | 1200 | 650 | 490 | 360 | 180 | ≥70a | 3800- 4500K |
| HD-IW-L100A-A00C | 12600±10% | 3050 | 1080 | 580 | 333 | 286 | 167 | ≥70a | 2700- 3500K |
Notes: Tolerance of measurement of luminous intensity±15%
Features of the Products:
l High efficiency, energy saving
l Safe and reliable
l Long life span, over 35,000 hours
l Copper pipe convection radiator
l No radiation, recyclable, no pollution
l Easy to control, the light is dimmable by adjust electricity current
l Good heat dissipation, no start up delay, no stroboscopic light

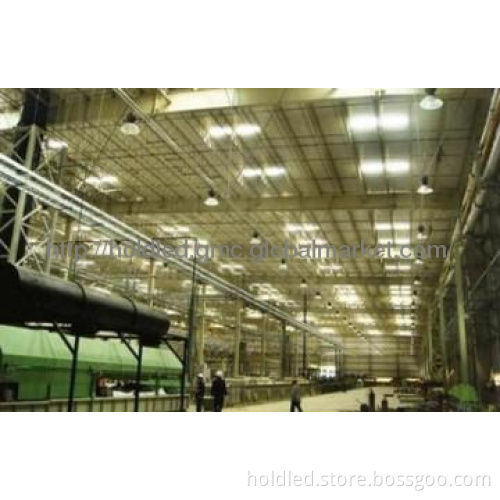

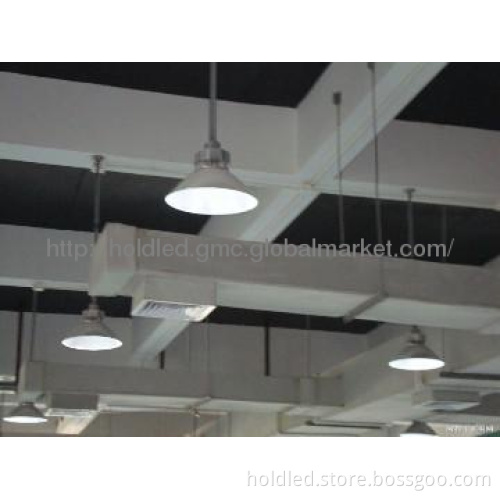

Applications:
l 1. Directly replace the traditional HID light to save energy and protect environment.
l 2. Popular applied as tunnel light, garden, advertising, hotel,advertising board,factory etc.
l 3. Replacement for conventional Haligan lamps ,super markets ,Factories and offices,
l Commercial complexes, squareys, Government projects, Railway Stations, Airports, Schools
Why choose to cooperate with HOLDLED?
lWe offer good quality products to our clients and design and manufacture any LED products based on the idea of our client. If you have an idea ,We can make your ideas come to truth.For we have a a strong team for research,Each of them has more than 5years experience on average in LEDs research.
lWe supply good after sales services.
Any product you bought from us burned out naturally,we will send you free replacment including the shipping cost. For more details about the after service, please see the below at the bottom of this page.

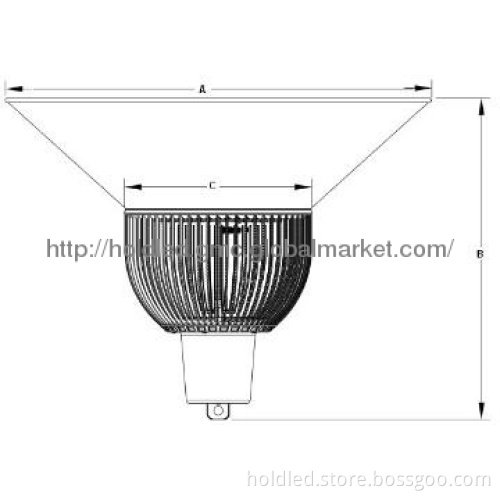

Mechanical Dimensions:(Unit:mm) ±2mm
| LED Power | A(mm) | B(mm) | C(mm) |
| 150W High bay | 570 | 430 | 250 |
Certification
After -sale Services
Additional Information
| Payment Terms | T/T, Western Union, Money Order, Paypal |
|---|---|
| Minimum Order | 5 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Samples will be deliverd within 3-5days |
| FOB Port | Shenzhen |
| Loading Info | FOB shenzhen |
| Packing Info | 4PCS/CTN |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
