15w LED corn light E27/E26 1600lm
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Input voltage | 85-265V |
|---|---|
| lumen | 1600lm |
| warranty | 3years |
| Life | 50000hs |
| Lamp Holder | E40 |
| Color Tones | Natural White |
| Dimmable | Yes |
| Material | Acrylic, Aluminum |
| Lamp Base | E40 |
| Light Source Chip | Epistar |
| Voltage | 90-260V |
| Illuminant | LEDs |
| Package | Yes |
| Power Storage or Not | No |
| Power | 15W |
| Shape | Global Shape |
Detail Description

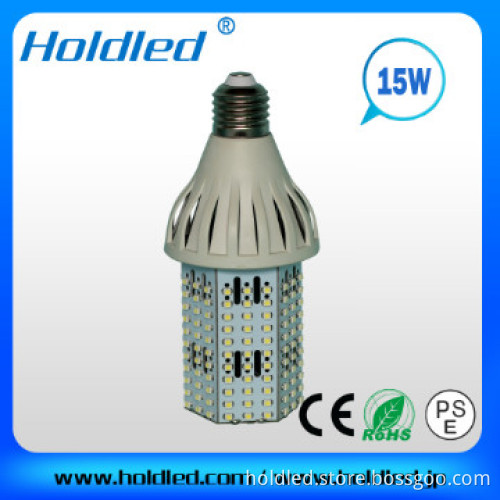

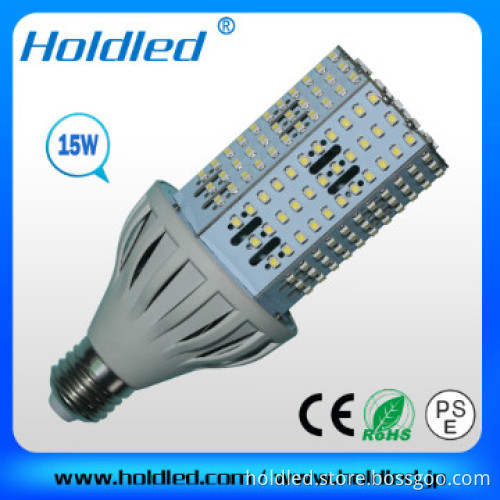

Product Name: corn cob led bulb replacing 70w metal halides, 15W LED corn light
Item No: HD-CE40-W220Z- -A00A
Part Numbers Note:
| Part Number | Description |
HD-CE27-X220Z-A00C |
C*L=72*160mm,220PCS SMD 3528 LEDs, AC100~300V, 50/60Hz, 360 degree, |
Note: X: Wmean Natural White(CW) CCT: 5600-7000K (2 grade:5600-6300k, 6300-7000k)
T mean Daylight (PW) CCT: 3800-4500K (2 grade:3800-4000k, 4000-4500k)
L mean Warm White(WW) CCT: 2700-3500K (2 grade:2700-3000k, 3000-3500k)
Technical Specifications:
| Item | Specifications | Parameter |
| Electrical | Input Voltage | AC100-240V |
| Power Consumption | 15±10%W | |
| Power Factor |
>0.97/110V , >0.94/220V , > 0.9/277V |
|
| Frequency Scope | 50/60Hz | |
| Operating Temperature | -20~40°C | |
| Photometric | Socket type | E40,E39,E27.E26 |
| Work Environment | Indoor use | |
| Lighting Source | 3528SMD LED | |
| Beam Angle | 360° | |
| Life span | >35000h | |
| Led qty | 392pcs 3528 | |
| Dimension | Dimension | 72*160mm |
| Net Weight (1pcs) | 230g±10% | |
| Small Box | 75*78*170 mm |
| Part Number |
Lumens (LM) |
Illuminance(lux) | CRI | CCT | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||||
| HD-CE27-W220Z-A00A | 1700±10% | 138 | 47 | 26 | 15 | 11 | 8 | ≥73a | 5600- 7000K |
| HD-CE27-T220Z-A00A | 1630±10% | 120 | 41 | 21 | 13 | 10 | 7 | ≥73a | 3800- 4500K |
| HD-CE27-L220Z-A00A | 1600±10% | 105 | 36 | 18 | 12 | 9 | 7 | ≥73a | 2700- 3500K |
Notes: Tolerance of measurement of luminous intensity±15%
Features of the Products:
lAluminum with high conductivity, driver can withstand high Temperature.
lHigh brightness,small volume, light weight, replace conventional CFL ,HPS,MH,etc.
l80% more energy saving compared with conventional lights
lSpecial surface design for heat dissipation
lCertificate: CE, RoHS
lBeam Angle: 360 degree
Applications:
lWarehouse, indoor lighting, street landscape.
lConference / Meeting rooms/Commercial Complexes
lResidential / Institution Buildings/Schools, Colleges / Universities
lPlaces where need energy saving and high color rendering index lighting
Package:
| Part No. |
Net weight |
Box | Carton | ||||
| Size (mm) | Gross weight | Pcs/box | Size(mm) | Gross weight | box/carton | ||
| HD-CE40-W312Z-A00A | 0.23kg | L75*W78*H170 | 0.27kg | 1 | L435*W370*H200 | 6.9kg | 20 |
Size of 15W LED Corn light:
Certification
After -sale Services
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 2 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB SHENZHEN |
| FOB Port | Shenzhen |
| Loading Info | By sea or by air |
| Packing Info | 20PCS/CARTON |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
