CE&RoHS 70W led corn light for garden lighting
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| waranty | 3yers |
|---|---|
| Input voltage | 100-300V |
| lumen | 8000lm |
| Power | 70W |
| Life | 50000HS |
| Lamp Holder | E40 |
| Color Tones | Natural White |
| Dimmable | Yes |
| Material | Acrylic, Aluminum |
| Lamp Base | E40 |
| Light Source Chip | Epistar |
| Voltage | 90-260V |
| Illuminant | LEDs |
| Package | Yes |
| Power Storage or Not | No |
| Shape | Global Shape |
Detail Description

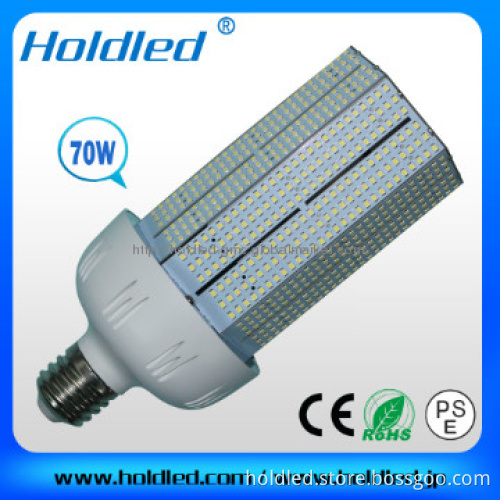

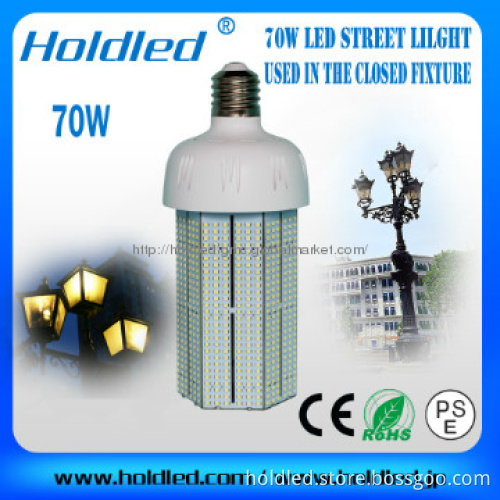

Product Name: 70W LED Street light replacing 200w metal halides,
70W LED Street light can use in the air tight fixture
Item No: HD-CE40-W1148-A00P
Part Numbers Note:
| Part Number | Description |
| HD-CE40-X1148Z- A00P | 118*262mm,1148PCS SMD 3528 LEDs, AC100~300V, 50/60Hz, 360 degree, Aluminum + Fan |
Note: X: W mean Natural White(CW) CCT: 5600-7000K (2 grade:5600-6300k, 6300-7000k)
T mean Daylight (PW) CCT: 3800-4500K (2 grade:3800-4000k, 4000-4500k)
L mean Warm White(WW) CCT: 2700-3500K (2 grade:2700-3000k, 3000-3500k)
Technical Specifications:
| Item | Specifications | Parameter |
| Electrical | Input Voltage | AC100-300V |
| Power Consumption | 70±10%W | |
| Power Factor |
>0.97/110V , >0.94/220V , > 0.9/277V |
|
| Frequency Scope | 50/60Hz | |
| Operating Temperature | -20~65°C | |
| Photometric | Socket type | E40,E39 |
| Work Environment | Closed fxture | |
| Lighting Source | 3528SMD LED | |
| Beam Angle | 360° | |
| Life span | >35000h | |
| Led qty | 1148pcs 3528 | |
| Dimension | Dimension | 118*330mm |
| Net Weight (1pcs) | 820g±10% | |
| Small Box | 135*135*300 mm |
| Part Number |
Lumens (LM) |
Illuminance(lux) | CRI | CCT | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||||
| HD-CE40-W1148Z-A00P | 8000±10% | 500 | 210 | 140 | 83 | 55 | 40 | ≥73a | 5600- 7000K |
| HD-CE40-T1148Z-A00P | 7500±10% | 470 | 195 | 136 | 78 | 52 | 37 | ≥73a | 3800- 4500K |
| HD-CE40-L1148Z-A00P | 7300±10% | 450 | 184 | 132 | 75 | 50 | 35 | ≥73a | 2700- 3500K |
Notes: Tolerance of measurement of luminous intensity±15%
Features of the Products:
l Aluminum with high conductivity, with long-life fan and high quality drive, it can withstand high Temperature.
l The special designed, working in the closed fixtures under 65 degree.
lHigh brightness,small volume, light weight, replace conventional CFL ,HPS,MH,etc.
l 80% more energy saving compared with conventional lights
l Special surface design for heat dissipation
l Certificate: CE, RoHS
lBeam Angle: 360 degree
Applications:
l Warehouse, indoor lighting, street landscape.
l Closed fixtures.
lConference / Meeting rooms/Commercial Complexes
lResidential / Institution Buildings/Schools, Colleges / Universities
lPlaces where need energy saving and high color rendering index lighting
Why choose to cooperate with HOLDLED?
l We offer good quality products to our clients and design and manufacture any LED products based on the idea of our client. If you have an idea ,We can make your ideas come to truth.For we have a a strong team for research,Each of them has more than 5years experience on average in LEDs research.
l We supply good after sales services.
Any product you bought from us burned out naturally,we will send you free replacment including the shipping cost. For more details about the after service, please see the below at the bottom of this page.
l Holdled is the only produce LED street light use in the closed environment.
Package:
| Part No. |
Net weight |
Box | Carton | ||||
| Size (mm) | Gross weight | Pcs/box | Size(mm) | Gross weight | box/carton | ||
| HD-CE40-W1120Z-A00P | 0.82Kg | L300*W135*H135 | 1.1Kg | 1 | L585*W570*H327 | 16Kg | 16 |
Size of 70w LED Street light
Certification
After -sale Services
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 2 |
| Lead Time / Delivery Time | 8 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB SHENZHEN |
| FOB Port | Shenzhen |
| Loading Info | By sea or by air |
| Packing Info | 16pcs/ctnCtn Size: L585x W570xH370G.W.:16KG. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
