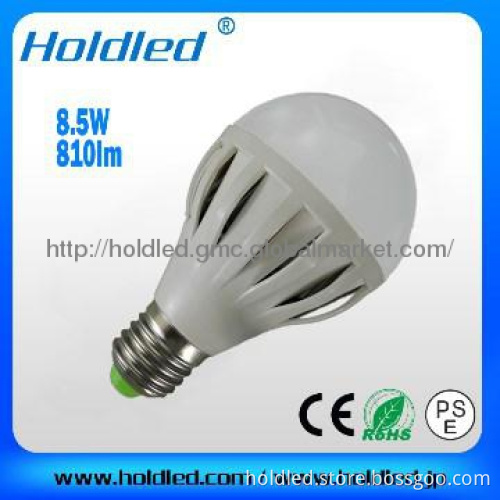

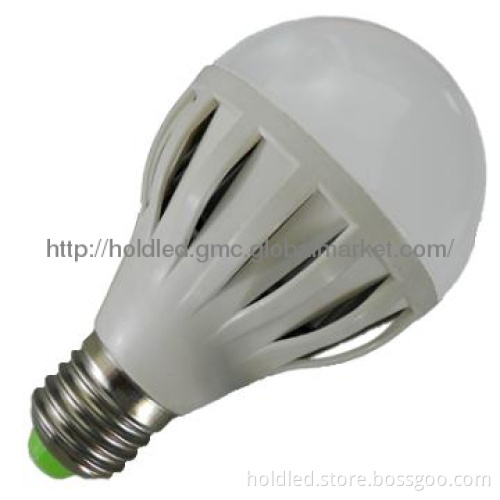

8W LED bulb 810lm PC casing
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Lumen | 810lm |
|---|---|
| warranty | 3years |
| Power | 8W |
| Life | 35000hs |
| Material | Acrylic, Aluminum Die Casting |
| Lamp Holder | E27 |
| Color Tones | Cool Color |
| Light Source Chip | Epistar |
| Voltage | 90-260V |
| Illuminant | LEDs |
| Dimmable | No |
| Package | Yes |
| Lamp Base | E27 |
| Power Storage or Not | No |
| Shape | Global Shape |
Detail Description
High quality 8W 810LM led E27 E26(CE&RoHS)
Part Numbers Note:
| Part Number | Description |
| HD-BE27-X17C-A00 | c*L =72*120mm, 17PCS 5630LEDs, AC100~240V, 140 degree, heat-conductive plastic compound +Aluminum + Perviousness rate 94%optical Lens + Efficiency of 92% irrigation thermal adhesive power. |
Note: X: W mean Natural White(CW) CCT: 5600-7000K (2 grade:5600-6300k, 6300-7000k)
T mean Daylight (PW) CCT: 3800-4500K (2 grade:3800-4000k, 4000-4500k)
L mean Warm White(WW) CCT: 2700-3500K (2 grade:2700-3000k, 3000-3500k)
Tecnoical Specifications:
| Item | Specifications | Parameter |
| Electrical | Input Voltage | AC100-240V |
| Power Consumption | 8.5±10%W | |
| Power Factor | ≥0.9 | |
| Frequency Scope | 50/60Hz | |
| Operating Temperature | -20~40°C | |
| Photometric | Socket type | E27,B22,E26 |
| Work Environment | Indoor use, prohibied to be used in closed fittings( or environment temperature over 50 °C). | |
| Lighting Source | 5630SMD LED | |
| Beam Angle | 140° | |
| Life span | >35000h | |
| Led qty | 17pcs | |
| Dimension | Dimension | C*L =72*120mm |
| Net Weight (1pcs) | 165g | |
| Small Box | 73x73x129mm |
| Part Number | Lumens(LM) | Illuminance(lux) | CRI | CCT | ||
| 1m | 2m | 3m | ||||
| HD-BE27-W17C-A00 | 810±10% | 200 | 60 | 42 | ≥70a | 5600-7000K |
| HD-BE27-T17C-A00 | 770±10% | 190 | 56 | 40 | ≥70a | 3800-4500K |
| HD-BE27-L17C-A00 | 750±10% | 181 | 50 | 33 | ≥70a | 2700-3300K |
Notes: Tolerance of measurement of luminous intensity±15%
Features of the Products

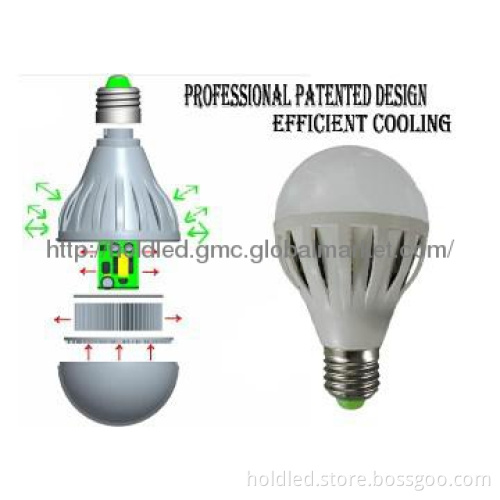

lPatent conduction technology, high brightness, small volume, light weight, replace the
installation of incandescent light and CFL.
lReplace the conventional CFL bulb and incandescent,60-80% more energy saving compared
with conventional street light, CFL Incandescent light.
lCertificate: CE, RoHS
lBeam Angle: 140 degree
Applications:
lHotels/Hospitals
lConference / Meeting rooms/Commercial Complexes
lResidential / Institution Buildings/Schools, Colleges / Universities
lPlaces where need energy saving and high color rendering index lighting
Why choose to cooperate with HOLDLED?
l We offer good quality products to our clients and design and manufacture any LED products based on the idea of our client. If you have an idea ,We can make your ideas come to truth.For we have a a strong team for research,Each of them has more than 5years experience on average in LEDs research.
l We supply good after sales services.
Any product you bought from us burned out naturally,we will send you free replacment including the shipping cost. For more details about the after service, please see the below at the bottom of this page.
Package:
| Part No. | Net weight | Box | Carton | ||||
| Size (mm) | Gross weight | Pcs/box | Size(mm) | Gross weight | box/carton | ||
HD-BE27-W20C-A00 |
9.9Kg | H73xW73xL129 | 1.3Kg | 1 | L565xW435xH280 | 12.6Kg | 60 |
Size of 10w LED Bulb:
Certification
After -sale Services
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB Shenzhen |
| FOB Port | Shenzhen |
| Loading Info | By sea or by air |
| Packing Info | Carton:60pcs/cntCtn Size: L565*W435*H280G.W.: 12.6KG |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
