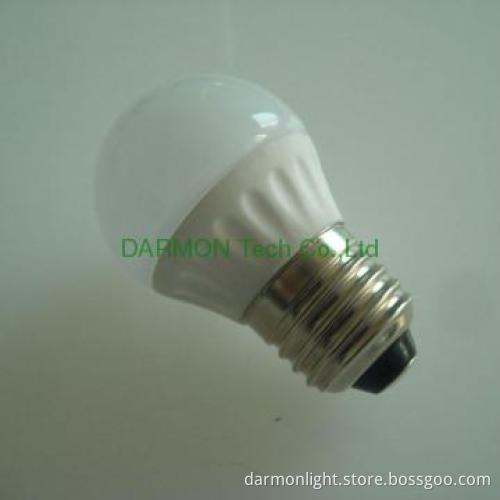

3W hot selling with Ceramic body , good heat dissipation
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Color | WW/NW/CW |
|---|---|
| Led chip | Epistar |
| Body material | ceramic |
| Lamp lumens | 200-280 |
| Life | 50000hours |
| Power | 3W |
| Voltage | 110-220V |
| Lamp Holder | E27 |
| Light Source Chip | Epistar |
| Illuminant | LEDs |
| Dimmable | No |
| Package | Yes |
| Lamp Base | E27 |
| Power Storage or Not | No |
| Material | Ceramics, Glass |
| Shape | Global Shape |
Detail Description
Product parameters table
Input voltage |
85~277V AC or 12V or 24V |
Frequency |
50-60HZ |
Power factor(PF) |
>0.95 |
Power Consumption |
3W |
LED luminous efficiency |
≥70LM/W |
Color rendering index(CRI) |
Ra>70 |
Working temperature |
-30°C-50°C |
Storage Temperature |
-40°C-80°C |
Lifespan |
>50000Hrs |
LED type |
High Power |
LED chip |
Epistar |
LED Q’ty |
3PCS |
Net weight |
50G |
Viewing Angle |
180° |
Dimension(Unit:mm) |
ø45*74 |
Protection gradez(IP) |
IP44 |
Packaging Introduction |
420*350*520mm(150PCS/Carton) |
All data is under 25°C,unless otherwise specified.
Symbol |
Parameter |
Unit |
Min. |
Typ. |
Max. |
Vin |
Input Voltage |
V |
12 |
-- |
24 |
Iin |
Input Current |
mA |
80 |
-- |
176 |
P |
Power consumption |
W |
3 |
33 |
4 |
% |
Power Factor |
|
0.99 |
1 |
1 |
F |
Input frequency |
Hz |
50 |
- |
60 |
Top |
Operating temperature range |
°C |
-20 |
-- |
+50 |
Tstg |
Storage temperature range |
°C |
-20 |
25 |
+50 |
Iv |
Lumen output |
lx |
190 |
220 |
270 |
CT |
Color temperature |
K |
2700 |
-- |
7000 |
CRI |
Colour Rendering Index |
-- |
60 |
70 |
82 |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 200 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | 3-7 work days for sample, 12-20 work days for mass products |
| FOB Port | Shenzhen |
| Loading Info | According to customers\' requirement |
| Packing Info | 1pc per inner box, 150pcs per carton(42CM*35CM*52CM) |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
