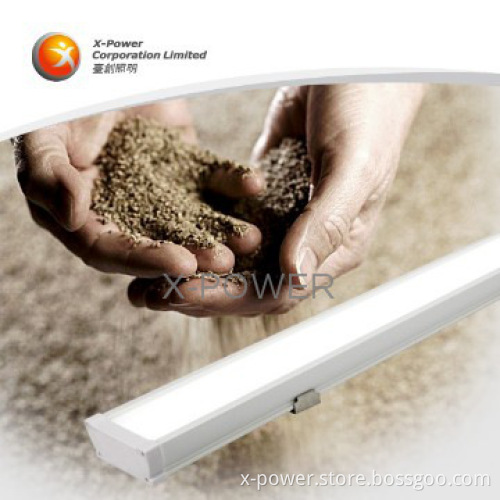

High power 43w IP65 weather proof fitting

Features:

1.The tri-proof means water-proof, dust-proof, corrosion-proof. And this can be achieved by anti-oxidation and Anticorrosion materials and the silicon seals.



2.The circuit control board is also deal with the three protection process. According to the weakness of the electrical seal box dissipation capacity, the special temperature control working circuit is used to reduce the working temperature of the power inverter and hence the isolation of the strong current.



3.The double insulation of the connector clip makes sure the safety of the circuit.Still, the Nano coating of the lamps case eliminate the dust and water entry.

Technical Parameters:


Model	XP-PL3015	XP-PL3027	XP-PL3043
Power	15w	27w	43w
Luminous	1110lm	2130lm	3486lm
Luminous Eficiency	83lm/w	83lm/w	83lm/w
Quantity of LEDs	168leds	288leds	480leds

Power factor	>0.9
Led light source	SMD 3014
Color temperature	Cold white/Warm white
Color rendering index	>80
Beam angle	120 degree
Operatiing Environment	-20℃-+45℃
Storage Environment	-25℃-+50℃
Tri proof	water-proof , dust-proof , corrosion-proof
IP grade	IP65
Warranty	3 years
Uniformity of illuminance	>90%
Illuminance uniformity	>0.8
Service life of light source	>30,000hours
Power supply fixation	build-in power supply
Certificates	CE, RoHS,TUV

Product details pictures:





Application:


The tri-proof light is widely used in industry environment with strong corrosivity, heavy dust and rainy, such as
the power plant, iron and steel plant,petrochemical plants, ship yard,stadium and farms etc



Packing Information:


Model	1PCDimension	1pc N.W	1pc G.W	Qty/carton	1carton Demension	1 carton Weight
xp-pl3015	740*160*80mm	1.23kg	1.54kg	6pcs	757*502*182mm	11.5kg
xp-pl3027	1300*160*80mm	2.23kg	2.72kg	6pcs	1322*502*182mm	19.5kg
xp-pl3043	1610*160*80mm	2.73kg	3.32kg	6pcs	1632*502*182mm	23kg

 X-power advantages

Product lines: LED Downlights, LED spotlights,  candle lights, flood lights, bulbs, ceiling light and tri-proof light(NEW).

We offer one stop solution from LED chips encapsulating to LED light assembly.currently we    have more than 50 OEM & ODM customers

We offer different quality and price level lights based on customer\'s requirements.  We offer different quality and price level lights based on customer\'s requirements.

ISO certified factory. SAA,CE & RoHS approved LED lights,now we are doing TUV-GS for our tri-proof light.

6 years experience of being agent of Taiwan LED chips

Our sevice:

We servide  lighting solutions.
The customization solutions include, but are not limited to:LOGO Imprint:Silk-screen laser printing with logo, model number, date etc;

Marketing sticker and lables
LOGO Imprint Location:Product box,gift box,user-manual,etc
Customized user instructions(translation required);
