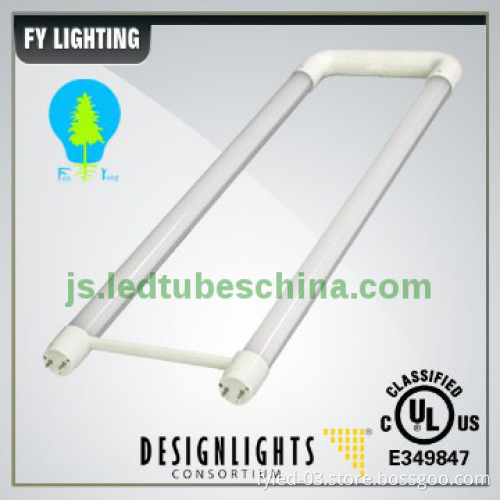

U Shape led tubes light 18W UL approved
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| LED Quantity | 288pcs |
|---|---|
| PFC | >0.9 |
| CCT | 2700~6500K |
| CSA,UL,CE approved | High quality with best price |
| Life | 50000 |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Cool Color |
| Power | 18W |
| Illuminant | SMD |
| Voltage | 110-220V |
Detail Description
U Shape led tubes light 18W UL approved
UL cUL approved AC120-277V LED T8 U tube with External driver: 2ft. file number: E349847, E341042, E353331 .
UL cUL approved AC100-277V LED T8 U tube with Internal driver: 2ft. file number: E349847, E341042.
Can replace 45W U shape fluorescent tube
288pcs 3528SMD
clear/frosted lensing
85-277V G13
Specification:
Item No. |
Cover(Lens) |
Power (W) |
Input voltage |
LEDs 3528SMD |
Lumens |
Efficiency |
CRI |
Color Temperature |
PF |
|
FY-U-288-C |
Transparent |
18W |
AC120V-277V |
288pcs |
1800lm |
>95lm/W |
80 |
WW/NW/CW |
>0.9 |
|
FY-U-288-F |
Frosted |
18W |
AC120V-277V |
288pcs |
1700lm |
>85lm/W |
80 |
WW/NW/CW |
>0.9 |
Dimension:
Other Parameters:
Operating Temperature(-20-50)
Stock Temperature:0-50
Main Material:Aluminium Base + Aliuminium Housing
Optical Parameters:
luminous efficiency: 110lm/w
luminaire efficiency:90%
Electronical Parameters:
Input Voltage:AC85-277V
Frequency:50-60Hz
Power Supply Efficiency:88%
PFC>0.9
Additional Information
| Payment Terms | L/C, T/T, Western Union, Money Order |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | 1.20pcs in a export carton2.we can pack as your requirment |
| FOB Port | Shenzhen |
| Loading Info | BY express:3-5 working days by air: 15-23 working days |
| Packing Info | 2ft:72x24x20cm3ft:105x25x24cm4ft:132x24x21cm5ft:160x23x20cm6ft:195x25x24cm8ft:253x24x21cm |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
