cUL CSA 347v 18w 2ft u shape led tube
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Power supply | External driver |
|---|---|
| Voltage | 277-347v |
| PF | >095 |
| THD | <20 |
| CCT | 2700K-7000K |
| Life | 50000 |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Voltage | 380V |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Natural White |
| Power | 18w |
| Illuminant | SMD |
Detail Description

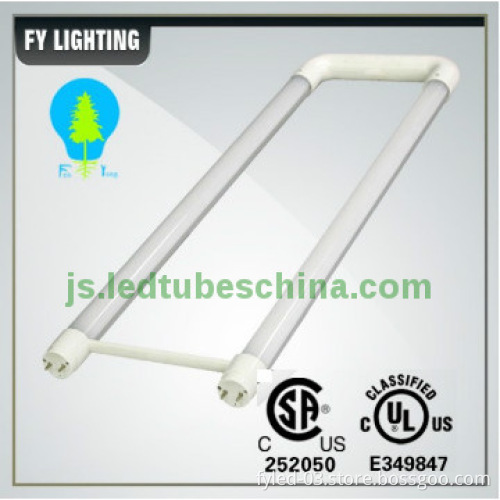

cUL CSA 347v 18w 2ft u shape led tube
Discription:
FY\'s LED U ben are high quality replacements of standard fluorescent tubes (T8 U Tube), These LED U Tube lights use surface mount diodes to provide 50,000+ hours of lifetime. Exceptional thermal management is achieved using a ribbed aluminum heat sink with a ‘D’ channel extrusion which is thermal bonded to an aluminum core PCB carrying the LED chips. The outer shell is a robust design with a shatterproof polycarbonate lens. A variety of color temperatures are available, making this product ideal for thousands of lighting applications
Specification:
| Model No. | FY-T8-UEX |
| Wattage | 18W |
| Voltage | AC277-347V |
| Frequency | 50-60Hz |
| PF | >0.9 |
| THD | <20% |
| CRI | >80Ra |
| LEDs | 288 |
| Lumens | 2000Lm |
| Beam Angle | 120degrees |
| CCT | 2700-70000K |
| PC cover | Clear/Frosted |
| Certificates | UL CSA CE RoHS |
DLC approved LED Tubes T8: 4ft External driver and Internal driver available.
VDE certified AC220-240V LED Tube T8 with Internal driver :2ft ,3ft ,4ft ,5ft , file number:40036713
UL cUL approved AC100-277V LED Tube T8 with Internal driver: 2ft, 3ft, 4ft, 5ft, 6ft ,8ft. file number :E349847 ,E341042 .
UL cUL approved AC120-277V LED Tube T8 with External driver: 2ft,3ft,4ft,5ft,6ft,8ft. file number: E349847,E341042,E353331 .
UL cUL approved AC277-347V LED T8 U tube with External driver: 2ft. file number: E349847, E341042, E353331 .
UL cUL approved AC100-277V LED T8 U tube with Internal driver: 2ft. file number: E349847, E341042.
CSA approved AC277-347V LED T8 Tube with External driver: 4ft .file number: 252050.
UL CUL approved AC120-277V Freezer LED Tube with external driver, file number: E353331
Advantage:
1. High luminous efficiency up to 110lm per watt, and high illumination up to 75lux/3m height
2. Top quality material for excellent heat dissipation performance
3. Beautiful appearance, thick heat sink, good for heat releasing
Aluminum board and aluminum housing guarantee double heat releasing avoid light depreciation and prolong
Lifespan up to 50,000 hours
4. Top safety: Isolated driver
5. LM80 LM79 test report, IES file
Strict quality control, ISO9001-2008 certificate
Strict quality control: 72hrs burn-in test before shipment, low failure rate within 3‰
A series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
Drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
1. 24hrs for burn-in light source
2. 24hrs-48hrs for burn-in drivers and shorts
3. 48hrs-72hrs for burn-in leakage
4 . 48hrs-72hrs for burn-in IC, compacitor and resistor
Additional Information
| Payment Terms | T/T, Western Union, Money Order, Others |
|---|---|
| Minimum Order | 1pcs |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | t8 led tube Sampe order:5-7daysMass production:15days |
| FOB Port | Shenzhen |
| Loading Info | t8 led tubeBy Express , by air or sea |
| Packing Info | t8 led tube25pcs/box , 64x43x43cm/box |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
