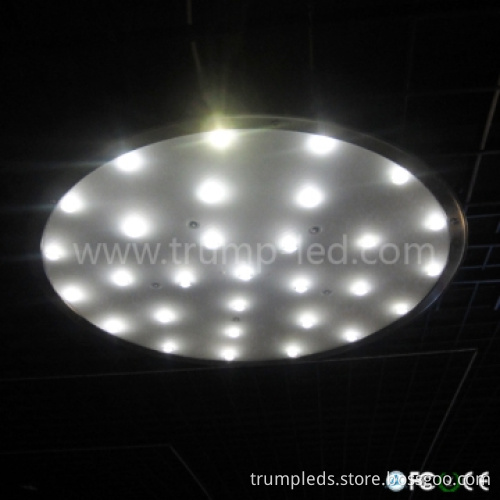

Superbright LED Round Ceiling Panel Lights SMD 5252

High quality pendant light is 2012 new ultra-thin LED ceiling light, which is independently researched and developed by our company R & D persons (Trump Lighting). We will insure the LED ceiling more energy efficient & higher brightness; Saving up 50% energy consumption, high CRI to insure a truer color of the good & environment;Aluminum body to insure heat dissipation and the same time the long lifespan of the LED Panel light; Adpot High-light-transmittance Light panel above.



LED type: SMD 5252

Working voltage: AC90-265 V

Lamp power: 7 W

Light lumen: 560 LM

LED quantity: 30 LEDS

Light colors: warm white (3035 + 185 K)

            Pure white (4475 + 225 K)

            cool white (6500 + 500 K)

Light Angle: 45 °

The surface temperature: more than 40 degree

Use of the environment temperature:-20 ~ + 60

Use environment humidity: more than 90%

Storage temperature: ~ + 60

Lifespan: over 40000 hours

Waterproof level: IP20; CRI: > 70

nput Voltage：AC85V~AC265V

Beam angle of led light panel: 120°

Luminous efficacy :78~85lm/W

Installation of led panel: Convenient and efficient, one catenary & push-in type are available.

Certificate: CE, RoHS, with 3 year quality warranty.

Main Parameter

Part No.	Name	Components	weight	Size	Lumen	power
EX107F01	LED ceiling light	PMMA lens+Components	3.0Kg	410x40mm	560lm	7w
ED107F01	LED pendant light	PMMA lens+Components	3.0Kg	410x*500mm	560lm	7w

Application places

Market, hotel, indoor lighting

Household sitting room, bedroom, corridor, the balcony
