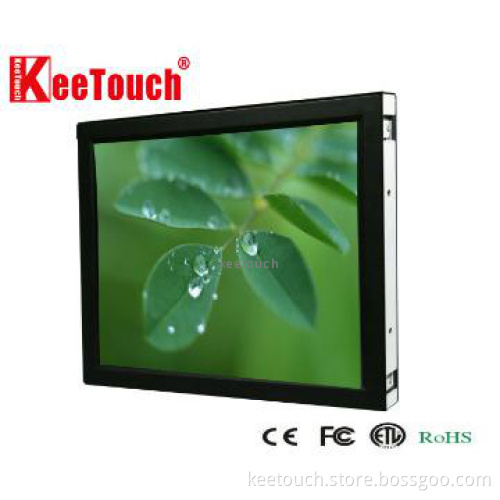

19\" waterproof type Touch Monitor
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Manufacturer | Yes |
|---|---|
| Warranty | One year |
| Certificates approved | ETL,FCC,CE,RoHS |
| Power Consumption | 50W Max |
| Brightness | 300cd/m2 |
| Resolution | 4096*4096 |
| Touch Points | Dual-Touch |
| Touch Panel Size | 21-40 inch |
| Type | Surface Acoustic Wave |
| Operating Temperature | -20~70centi-degree |
Detail Description
Features:
· Bezel seal standard:NEMA3 and IEC IP65
· Long lasting product cycle-enclosure controlled by Keetouch specifications
· Future generation panels phased-in without external changes
· High quality panel with high brightness,high contrast ratio and broad viewing angle
· Multiple mounting options including VESA mount, horizontal or vertical bracket-mount
· Compact and slim profile for easy integration from side,top and bottom
· Keetouch’s SAW technology on pure glass for the ultimate in image quality
· Finger or gloved hand operation
· Dual USB/Serial touch interface port
· Dual VGA/DVI input video format
· Worldwide agency approvals
Specification:
NOTE:The display SPEC. will change follow the relevant LCD panel brand and model
Accessories:
Power Cable: A North American power cable or an European power cable is included according to the end user’s area.
Power Supply Brick:A power supply brick is included.
Touch/Video/DVI Cables: Detachable serial or USB touch cable,video cable and DVI cable are included
L-brackets:Four standard L-brackets are included.
Typical Application:
Gaming/Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Hospitality
Banking
Customizsed Solutions
· Bezel seal standard:NEMA3 and IEC IP65
· Long lasting product cycle-enclosure controlled by Keetouch specifications
· Future generation panels phased-in without external changes
· High quality panel with high brightness,high contrast ratio and broad viewing angle
· Multiple mounting options including VESA mount, horizontal or vertical bracket-mount
· Compact and slim profile for easy integration from side,top and bottom
· Keetouch’s SAW technology on pure glass for the ultimate in image quality
· Finger or gloved hand operation
· Dual USB/Serial touch interface port
· Dual VGA/DVI input video format
· Worldwide agency approvals
Specification:
| Model No. | KOT-0190US-SA3BCW;KOT-0190US-SA4BCW; KOT-0190US-SA6BCW | ||||
| Series | OT,Water-proof and Compact | ||||
| Display Type | 4:3 Ratio 19Active matrix TFT-LCD | ||||
| Active Area | 15.6(376mm)×11.85(301mm) | ||||
| Monitor Dimensions |
Width: 415mm Width with brackets:436 mm Height: 343mm Height with brackets: 364mm Depth: 50/51/53mm for 3/4/6mm touchscreen glass |
||||
| Suggested Resolution | 1280×1024 @ 60Hz | ||||
| Support Colors | 16.7M | ||||
| Brightness(Typ.) | Pure LCD Panel | 300cd/m2 | |||
| With SAW Glass Sensor | 275cd/m2 | ||||
| Response Time(Typ.) | 6ms | ||||
|
Viewing Angle (Typ.at CR10) |
Horizontal(left/right) | 80°/80° | |||
| Vertical(up/down) | 80°/80° | ||||
| Contrast Ratio(Typ.) | 800:1 | ||||
| Video Input | Dual Analog RGB and DVI video format | ||||
| FrequencyH/V | 3080KHz / 6075Hz | ||||
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
||||
| Environment | Operating Temp. | 050°C | |||
| Storage Temp. | -2060°C | ||||
| Operating RH: | 20%80% | ||||
| Storage RH: | 10%90% | ||||
| MTBF | 50,000 Hours | ||||
| LCD Back light Life(Typ.) | 50,000 Hours | ||||
| WeightN.W/G.W | 5.5Kg / 7.2Kg (Approx.) | ||||
| Power Consumption | 50W Max. | ||||
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical (Standard mount brackets are supplied) |
||||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU | |||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
| Touch screen Type | Keetouch 19\" SAW 3/4/6mm compact touch sensor | ||||
| Touch System Interface | Having USB and Serial(RS232) interface | ||||
| Touch Response time | USB/Serial: 8.4/10.4ms | ||||
| Agency Approval | ETL,FCC,CE,RoHS | ||||
| Regular Warranty | 5 years for SAW Sensor; 3 years for controller; 1 year for LCD | ||||
NOTE:The display SPEC. will change follow the relevant LCD panel brand and model
Accessories:
Power Cable: A North American power cable or an European power cable is included according to the end user’s area.
Power Supply Brick:A power supply brick is included.
Touch/Video/DVI Cables: Detachable serial or USB touch cable,video cable and DVI cable are included
L-brackets:Four standard L-brackets are included.
Typical Application:
Gaming/Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Hospitality
Banking
Customizsed Solutions
