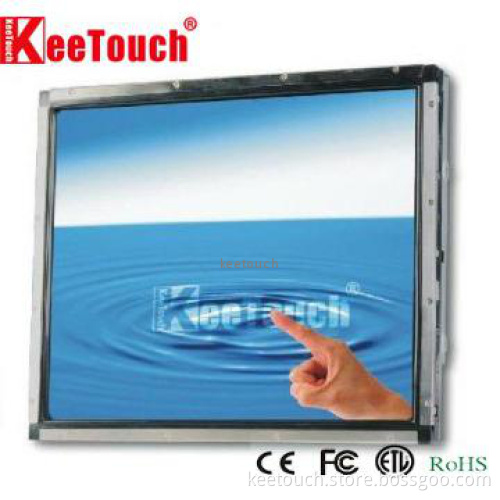

15\" Open Frame SAW touch monitor
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Technology | Surface Acoustic Wave(SAW) |
|---|---|
| Controller Interface | USB and RS232 |
| Touch Activation Force | 30-60g |
| Resolution | 4096*4096 |
| Touch Points | Multi-Touch |
| Touch Panel Size | 21-40 inch |
| Type | Surface Acoustic Wave |
| Operating Temperature | -20~70centi-degree |
Detail Description
Main Feature
- Compatible withs ElO\'s touch monitor
- Bezel seal standard:NEMA3 and IEC IP65
- Long lasting product cycle-enclosure controlled by Keetouch specifications
- Future generation panels phased-in without external changes
- Keetouch’s SAW technology on pure glass for the ultimate in image quality
- High quality panel with high brightness,high contrast ratio and broad viewing angle
- Multiple mounting options including VESA mount, horizontal or vertical bracket-mount
- Compact and slim profile for easy integration from side,top and bottom
- Finger or gloved hand operation
- Dual USB/Serial touch interface port
- Dual VGA/DVI input video format
- Worldwide agency approvals
Typical Application
- KTV machines
- Gaming machines,
- Slot machines,
- Photo booths,
- Coffee kiosks,
- Mobile kiosks;
- Information kiosks;
- POS,
- ATM,
- Gas station
- Medical equipments
- Vehicle-mounted and transportation
- Industrial control machines ect.
Performance Specifications
Model No. |
KOT-0150US-SA4BW; KOT-0150US-SA6BW |
|
Series |
OT, 15 inch open frame lcd touch monitor |
|
Structure |
Metal-cased openframe,plus Keetouch Water-proof touchscreen |
|
LCD Type |
15\"Active matrix TFT-LCD |
|
Active Area |
12\"(304mm)×9\"(228mm) |
|
Suggested Resolution |
1024×768 |
|
Support Colors |
16.2M |
|
Brightness(Typ.) |
Pure LCD Panel |
250cd/m2 |
With SAW Glass Sensor |
225cd/m2 |
|
Response Time(Typ.) |
8ms |
|
|
Viewing Angle (Typ.at CR>10)) |
Horizontal(left/right) |
75°/75° |
Vertical(up/down) |
70°/60° |
|
Contrast Ratio(Typ.) |
500:1 |
|
Video Input |
Analog RGB |
|
Signal Input |
H/V Separate Sync. (TTL) |
|
Video Signal Input Connector |
Mini D-Sub 15-pin VGA |
|
Frequency(H/V) |
30~80KHz / 60~75Hz |
|
Power Supply |
Type: External brick |
|
Environment |
Operating Temp. |
0~50°C |
Storage Temp. |
-20~60°C |
|
Operating RH: |
20%~80% |
|
Storage RH: |
10%~90% |
|
MTBF |
50,000 Hours |
|
LCD Back light Life(Typ.) |
50,000 Hours |
|
Weight(N.W/G.W) |
4.5Kg / 6Kg (Approx.) |
|
Power Consumption |
30W Max. |
|
Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical (Standard mount brackets are supplied) |
|
OSD Control |
Buttons |
AUTO,+,POWER,-,MENU |
Function |
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
|
Touch screen Type |
15\" SAW 4mm or 6mm Water-proof touch sensor (Available Options: Thickness/Anti-glare/Tempered) |
|
Touch System Interface |
Having USB and RS232 interface |
|
Touch Response time |
10ms |
|
Regular Warranty |
5 years for SAW Sensor; 3 years for controller; 1 year for LCD |
Main Components
- 15\" open frame SAW lcd touch monitor *1
- L-brackets*2
- Video cable*1
- Brick power supply *1
- Driver software CD*1
- Serial cable or USB cable*1
- Power cable US/Canada or European power cable *1
- Eight M4 Screws and Washers *some
- Other related parts
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 1week after get your payment |
| FOB Port | Guangzhou,Shenzhen |
| Loading Info | 1kit/carton |
| Packing Info | 1kit/carton.Dimension:56x49x20cm (1pcs/carton) or 53x25x46cm (2pcs/carton) |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
