Basic Specification
| Size | 22 |
|---|---|
| Frame | Aluminum/ Iron/Plastic/No |
| Interface | USB or RS232 |
| Resolution | 4096*4096 |
| Touch Points | Multi-Touch |
| Touch Panel Size | 21-40 inch |
| Type | Infrared |
| Operating Temperature | -20~70centi-degree |
Detail Description

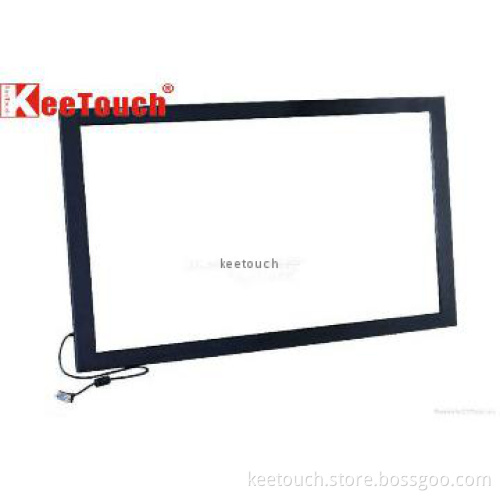

IR touch screen Main Features
- Scratch-free
- Fast response
- Maintenance-free
- Long-life(2 years)
- High transparency
- Dust-proof,water-proof,ir touch screen(infrared touch screen)
- Inner controller
- For both indoor and outdoor environments
- Good stability
- Suitable for large size
Typical Application
- KTV machine,
- Gaming machine,
- Slot machines,
- Photo booths,
- Coffee kiosks,
- Mobile kiosks;
- Information kiosks;
- POS machines,
- ATM machines,
- Gas station
- Medical equipments
- Vehicle-mounted and transportation
- Industrial control machines ect.
Performance Specifications
Resolution |
4096*4096 |
Optical | |
Reflection |
Little |
Transparence |
>95% |
Color distortion |
Almost not |
Clearance |
Good |
Sensitivity | |
Response Time (Typ.) |
16ms |
Drag |
Fluency |
Touch parameters | |
Touch time in theory |
No time limit |
Durability in theory |
>5 years |
Correct automatically |
Support |
Compensate automatically |
Support |
Check automatically |
Support |
Electric parameters | |
Operating Voltage |
4.5~5.5V |
Operating current |
160~200 A |
Others | |
Storage temperature |
-40~70°C |
Operating temperature |
-20~70°C |
Durability |
Scratch-free |
Anti-vandal |
Good |
Anti-glare |
Strong |
Anti electromagnetic interference |
Strong |
Transparence material |
Common glass or tempered glass |
Dust-proof |
Good |
Water-proof |
Good |
Touch object |
>5mm any object |
Maintainability |
Good |
Expected Life |
2 years |
Calibration |
Only need to do 1 time |
Size
17\" ir touch screen
Display Ratio: 5:4
Active dimension: 341mmmm (L) X273mm (W)
Outline area: 384mm (L) x 314mm (W)
19\"( KCI-U0190M3-R1B (W) )
Wide-screen type;
Active dimension:410mm(L)X256mm(W);
Outline area:466mm(L)x 313mm(W) .
- 17\"/19\" IR touch panel ( KCI-U017M3-R1B ) *1;
- Double-sided adhesive double tapes*1;
- Other related parts.
Certification
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Within 1 week after get your payment. |
| FOB Port | Guangzhou,Shenzhen |
| Loading Info | Carton |
| Packing Info | 1kit/Carton.Dimension:56x49x20cm (1pcs/carton) or 53x25x46cm (2pcs/carton) |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
