Product Description
Product Description
Basic Specification
| Resolution | 4096*4096 |
|---|---|
| Size | 32 |
| Screen type | Widescreen |
| Active area | 691*386mm |
| Resolution | 4096*4096 |
| Touch Points | Multi-Touch |
| Touch Panel Size | 21-40 inch |
| Type | Surface Acoustic Wave |
| Operating Temperature | -20~70centi-degree |
Detail Description

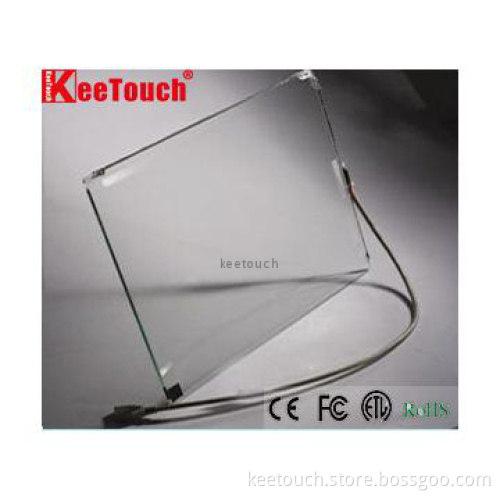

Ø SAW touch screen panel technical specification
Controller technical specification
| Technology | Surface Acoustic Wave (SAW) | |
| Sizes | 26\"-47\" | |
| Resolution | 4096 x 4096,Z-axis 256, not related with the sizes of the touch screen panel | |
| Material | Pure glass | |
| Positional Accuracy | Standard deviation of error is less than 0.080 in.(2mm) | |
| Light Transmission | More than 90% per ASTM | |
| Touch Activation Force | 30g - 60g | |
| Durability | Scratch-free; More than 50,000,000 touches in one location without failure. | |
| Surface Hardness | Mohs\' hardness rating of 7 | |
| Multi-Point Touch | Intelligent discrimination by software | |
| Operating Temperature | Touch Panel | -20°C to +60°C |
| Storage Temperature | Touch Panel | -40°C to +70°C |
| Humidity | 10%-90% RH at 40°C, non-condensing | |
| Operation Altitude | 3800m | |
| Accessories | Connector cables, double-sided glue, dust-proof stripes | |
| Agency Approval | UL, CE, FCC, RoHS, CB |
Controller technical specification
| Controller Interface | Dual USB and RS232 interface; KCA-UR02H-R1E |
| Sizes(PCB) | 119.5mm (L) x 73mm (W) x 10mm (H) |
| Working voltage | 12V±2V for KCA-UR02H-R1E |
| Working Current | 80mA for KCA-UR02H-R1E |
| Maximum Current | 100mA for KCA-UR02H-R1E |
| Response time | ≤16ms |
| Operating temperature | 0°C ～ 65°C |
| Operating humidity | 10%-90%RH. |
| Storage temperature | -25°C ～ 85°C |
| MTBF | more than 500,000 hours |
| Agency Approval | UL, CE, FCC, RoHS , CB |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 1week after get your payment |
| FOB Port | Shenzhen |
| Loading Info | carton |
| Packing Info | 1kit/carton.Dimension:56x49x20cm (1pcs/carton) or 53x25x46cm (2pcs/carton). |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
