Basic Specification
| Size | 19 |
|---|---|
| Frame | Aluminum/ Iron/Plastic/No |
| Interface | USB or RS232 or both |
| Type | infrared |
| Resolution | 4096*4096 |
| Touch Points | Dual-Touch |
| Touch Panel Size | 21-40 inch |
| Type | Infrared |
| Operating Temperature | -20~70centi-degree |
Detail Description

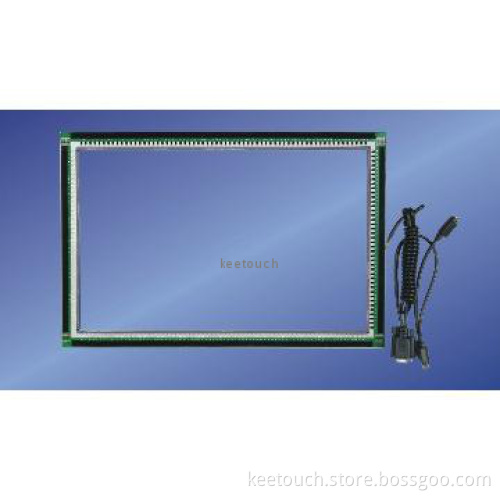

19\'\' IR TOUCH SCREEN
Scratch-free
Maintenance-free, Long-life
Good stability
High transparency
Dust-proof,water-proof
1, Product Features
- High stability. Any changes of time or environment will not cause any drift
- Comprehensive adaptability. The touch screen resists any interference from current, voltage or static and is suitable for use in particularly harsh or rugged environments. High light transmittance. The touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.
- Long service life. Extremely durable, scratch resistant and with a touch point density as high as 4096 x 4096.
- Easy activation. No touch pressure is required; no special material is required for touch activation; any material, whether soft or hard, whether conductor or nonconductor can be used as an activating stylus.
- Built-in Controller.
2,Technical Specification
physicalperformance
Resolution |
4096×4096 |
Transparency |
>95% |
Accuracy |
2mm |
Responding time |
<16ms |
Self-checking Technique |
Support |
Operating Characteristic
Touch Activation Force |
No pressure required |
Touch Times |
Unlimited |
Minimum Touch Object |
5mm |
Lift Time |
5 years |
Calibration |
1 time |
Electrical Characteristic
Operating Voltage |
4.75~5.25V; |
Operating Current |
200~220MA |
Interface |
USB2.0 |
Storage Temperature |
-40~70 degree |
Working Temperature |
-20~65 degree |
3,Touch driver
Supporting O/S:Microsoft Windows 7 / XP / 2000 / VISTA
Linux:RedHat 9.0 , Fedaro , Ubuntu , Suse , Debian
4,Certificate
FCC CE UL RoHS
5,Warranty
One year
6,Typical Application
KTV
Game machine
Indoor and outdoor kiosk
Medical device
Industry equipment
Gas station
Vehicle-mounted and transportation
All Rugged requirements
7,Dimensions
Wide-screen type
Active dimension:410mm(L)X256mm(W)
Outline area:466mm(L)x 313mm(W)
The diagonal 483mm.
For the drawing, please refer as below
8,packaging
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 1week after getting your firm payment |
| FOB Port | Shenzhen |
| Loading Info | carton |
| Packing Info | 1kit/carton.Dimension:56x49x20cm (1pcs/carton) or 53x25x46cm (2pcs/carton). |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
