Basic Specification
| Controller Interface | USB and RS232 |
|---|---|
| Technology | Surface Acoustic Wave(SAW) |
| Agency Approval | UL, CE, FCC, RoHS, CB,ETL,CF |
| Resolution | 4096*4096 |
| Touch Panel Size | 41-60 inch |
| Touch Points | Dual-Touch |
| Type | Surface Acoustic Wave |
| Operating Temperature | -20~70centi-degree |
Detail Description
Main Features
Keetouch\'s SAW touchscreen feature
- Scratch-free
- Maintenance-free
Free of drift
- Good stability
- Fast response
- High transparency
High image clarity
- Long-life(2 years)
Z-axis pressure recognition
Strong mechanical strength
Compact size for easy integration
Customization available on glass sensor size, driver, accessories
For both indoor and outdoor environments
Optional Dust-proof,water-proof, vandal-proof,anti-glare,or anti-reflection
SAW Touch screen Controller
- Has USB and RS232 dual interface
- MTBF: more than 500,000 hours
- EMI disturbing restrained
- More stable, safer
- Less power consumption
Typical Applications
- KTV machine,
- Gaming machine,
- Slot machines,
- Photo booths,
- Coffee kiosks,
- Mobile kiosks;
- Information kiosks;
- POS,
- ATM,
- Gas station
- Medical equipments
- Vehicle-mounted and transportation
- Industrial control machines ect.
Performance parameters

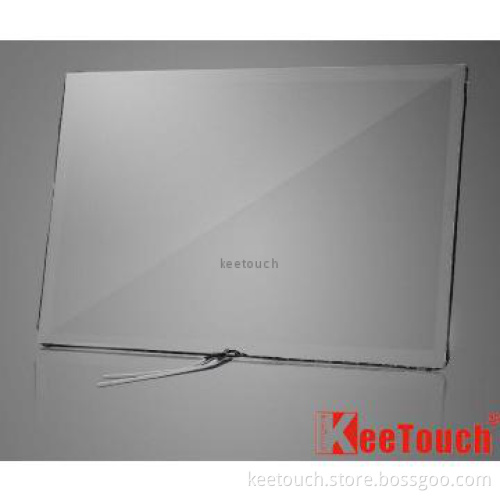

SAW touch screen panel technical specification
Technology |
Surface Acoustic Wave(SAW) |
|
Sizes |
42” (Optional 26\"~47\") SAW touch screen |
|
Controller Interface |
USB and RS232 |
|
Resolution |
4096*4096 ,Z-axis 256, not related with the sizes of the touch screen panel |
|
Material |
Pure glass |
|
Positional Accuracy |
Standard deviation of error is less than 0.080 in.(2mm) |
|
Light Transmission |
More than 90% per ASTM |
|
Touch Activation Force |
30-60g |
|
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure. |
|
Surface Hardness |
Mohs\' hardness rating of 7 |
|
Operating Temperature |
Touch Panel |
-20°C to +60°C |
Storage Temperature |
Touch Panel |
-40°C to +70°C |
Humidity |
10%-90% RH at 40°C, non-condensing |
|
Operation Altitude |
3800m |
Controller technical specification
Controller Interface |
Dual USB and RS232 interface; KCA-UR02H-R1E |
Sizes(PCB) |
119.5mm (L) x 73mm (W) x 10mm (H) |
Working voltage |
12V±2V for KCA-UR02H-R1E |
Working Current |
80mA for KCA-UR02H-R1E |
Maximum Current |
100mA for KCA-UR02H-R1E |
Response time |
≤16ms |
Operating temperature |
0°C ~ 65°C |
Operating humidity |
10%-90%RH. |
Storage temperature |
-25°C ~ 85°C |
MTBF |
more than 500,000 hours |
- Surface Acoustic Wave(SAW) touch screen(KAL-0260-4B)*1;
- Controller model( KCA-UR02H-R1E )*1;
- UD02H( USB,12V ) Connector Cables*1 (customization available) ;
- 1.8M RD02H(RS232,12V DC) Connector Cables*1 (customization available) ;
- Dust-proof Stripes(420*5*3MM)*8;
- Double-sided adhesive double tapes*2;
- Drive software CD*1;
- Other related parts.
CE, FCC,RoHS,UL ,CB
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 1week after get your payment |
| FOB Port | Shenzhen |
| Loading Info | carton |
| Packing Info | 1kit/carton.Dimension:56x49x20cm (1pcs/carton) or 53x25x46cm (2pcs/carton). |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
