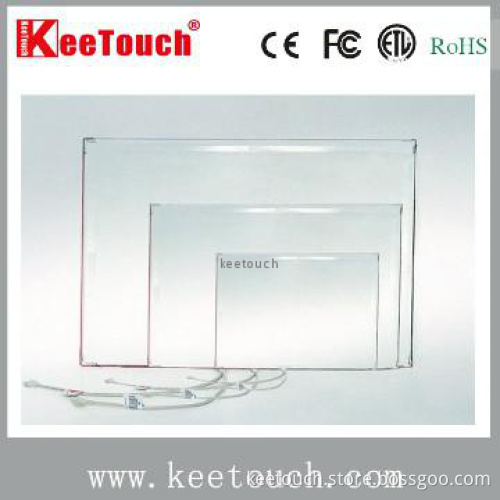

32\"inch SAW touch screen ---26\"-47\"
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Technology | Surface Acoustic Wave(SAW) |
|---|---|
| Sizes | 26 |
| Resolution | 4096*4096 |
| Touch Points | Dual-Touch |
| Touch Panel Size | 21-40 inch |
| Type | Surface Acoustic Wave |
| Operating Temperature | -20~70 centi degree |
Detail Description
- SAW touch screen panel technical specifications
Technology |
Surface Acoustic Wave (SAW) |
|
Sizes |
26\"-47\" |
|
Resolution |
4096 x 4096,Z-axis 256, not related with the sizes of the touch screen panel |
|
Material |
Pure glass |
|
Positional Accuracy |
Standard deviation of error is less than 0.080 in.(2mm) |
|
Light Transmission |
More than 90% per ASTM |
|
Touch Activation Force |
30g - 60g |
|
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure. |
|
Surface Hardness |
Mohs\' hardness rating of 7 |
|
Multi-Point Touch |
Intelligent discrimination by software |
|
Operating Temperature |
Touch Panel |
-20°C to +60°C |
Storage Temperature |
Touch Panel |
-40°C to +70°C |
Humidity |
10%-90% RH at 40°C, non-condensing |
|
Operation Altitude |
3800m |
|
Accessories |
Connector cables, double-sided glue, dust-proof stripes |
|
Agency Approval |
UL, CE, FCC, RoHS, CB |
- Controller technical specifications
Controller Interface |
Dual USB and RS232 interface; KCA-UR02H-R1E |
Sizes(PCB) |
119.5mm (L) x 73mm (W) x 10mm (H) |
Working voltage |
12V±2V for KCA-UR02H-R1E |
Working Current |
80mA for KCA-UR02H-R1E |
Maximum Current |
100mA for KCA-UR02H-R1E |
Response time |
≤16ms |
Operating temperature |
0°C ~ 65°C |
Operating humidity |
10%-90%RH. |
Storage temperature |
-25°C ~ 85°C |
MTBF |
more than 500,000 hours |
Agency Approval |
UL, CE, FCC, RoHS , CB |
u Part 2. Feature
- Same driver for both USB and RS232
- High image clarity
- Free of drift
- Z-axis pressure recognition
- Strong mechanical strength
- Short response time
- Compact size for easy integration
- Customization available on glass sensor size, driver, accessories
u Part 3. Accessories
-
Connector Cables
- Standard length: 1.8m (customization available)
- Cable type:
Cable Model No. |
Features |
Work with Controller |
Work with SAW Sensor |
UD02H |
USB, 12V power |
KCA-UR02H-R1E |
For all SAW touch screen sensor that size is more than 26” |
RD02H |
RS232, 12VDC power |
- Double-sided adhesive double tapes
- Dust-proof Stripes
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 1week after getting your payment. |
| FOB Port | Shenzhen |
| Loading Info | carton |
| Packing Info | Dimension:56x49x20cm (1pcs/carton) or 53x25x46cm (2pcs/carton) |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
