Specifications
ISO9001:2000, ISO1400, TS16949:2002 factory
7 years manufacturing experience
Strive to build the best living environment for people

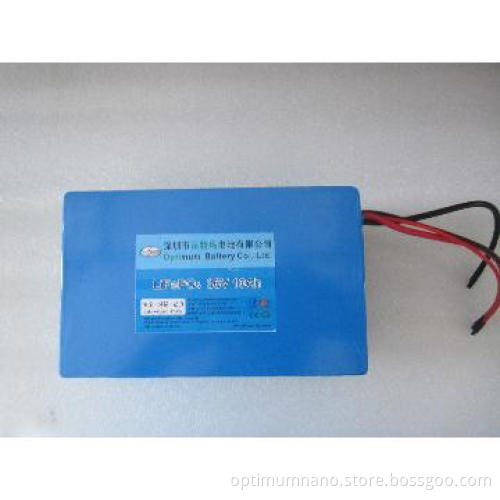

36V10AH lithium battery in standard sla case with charger+BMS
Brand new best quality. If you buy more, we will give you best price.
Parts included:
1. Lithium Battery with Standard sla plastic case
2. Built-in BMS board
3. Charger (36V 2.0A)
»»»specification--36v 10ah
Model |
IFR 32650/32750 |
|||
Case material |
steel case for single cells |
|||
Standard capacity(0.2C5A) |
10Ah |
|||
Rated voltage |
36V |
|||
Max.Charge voltage |
43.8V |
|||
Cut-off voltage |
30.0V |
|||
Standard.Charge current |
3A |
|||
Standard continuous discharge current |
1C-2C |
|||
Max.peak discharge current |
5C |
|||
Length (Max,including case) |
383 mm |
|||
Width(Max,including case) |
110 mm |
|||
Heighty (Max, including case) |
75 mm |
|||
Weight(Approx,including case) |
About 6kg |
|||
Impedance(Max, at 1000Hz.) |
≤ 10 mΩ |
|||
|
Charge method (cc/cv) |
Standard |
CC |
0.2C |
43.8V cut off |
CV |
43.8V |
0.01C cut off |
||
Rapid |
CC |
1C |
43.8V cut off |
|
CV |
43.8V |
0.05C cut off |
||
Operate temperature |
Charge |
0°C~45°C |
||
discharge |
-10°C~60°C |
|||
storage |
-20°C~45°C |
»»»Optimum battery`s character--36v 10ah battery:
·Fast charging
·Large overcharge tolerance and safe performance
·Self balance
·Simplifying battery management system (BMS) and battery charger
·Lifecycle of the whole pack: >80% capacity after 3000 cycles. Lifecycle of single cell: >80% capacity after 3000 cycles, >70% capacity after 4000 cycles.(<1C discharge rate and <1C charge rate)
·High temperature performance
»»» Application for Optimum` lithium battery:
Optimum has professionally build lifepo4 battery for 7 years, in domestic market and abroad.
Products include 3.2v-600V.
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
»»»Key Specifications:
High discharge 36V lithium ion battery 10Ah ;
Can offer high continuous/peak power;
Long lifespan, 6 to 7 years, 4 times of lead-acid battery;
Safe, high-power and eco-friendly, have no heavy metal and corrosive fluid;
Small in size, lightweight and with good performance;
We offers battery pack + BMS + charger as a whole solution;
Engineers would adjust BMS and charger as a whole system, customers just need to enjoy the convenience of usage;
Lightweight and optimized size;
Lightweight means energy would be saved due to total weight reduced and weight reduced also means long driving distance;
Can accept fast charging, 2 to 3 hours can be fully charged;
Batteries can also accept large charging current as energy regeneration by EV braking or reducing speed;
Our LifePO4 battery is mainly made of Cylinder cell;
Cylinder cells Structure are Anti-extrusion , Anti-collision.
Most importantly, they are very safe.
»»»36V battery gallery:
