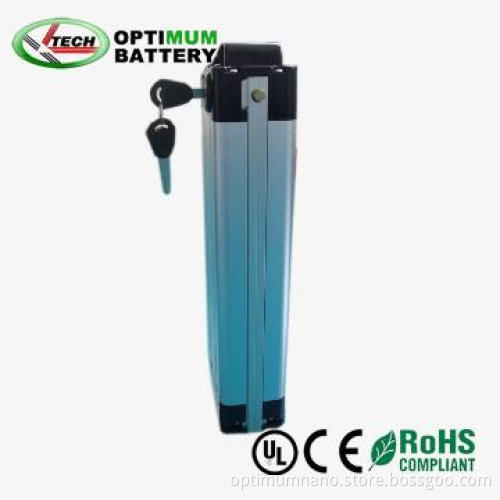

36v 10ah lifepo4 battery for e-bike
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Nominal Voltage | 36v |
|---|---|
| Warranty | 2 years |
| Capacity | 10ah |
| Weight | 4 kg |
| Size | 395*110*75mm/Customerized |
| Capacity | 10Ah |
| Voltage | 36v |
| Battery Type | Li-Ion |
Detail Description
High quality 36v 10ah li battery for electric scooter with bms
Specification
Battery Parameter | ||||
Model |
OPT12040 |
|||
Standard capacity(0.2C) |
10AH |
|||
Minim um capacity(1C) |
10AH |
|||
Rated voltage |
36V |
|||
|
|
|||
Max. Charge voltage |
43.8V |
|||
Cut-off voltage |
30V |
|||
Standard charge current |
2A-10A |
|||
Max charge current |
20A |
|||
Max discharge current |
20A |
|||
Pulse discharge current |
50A |
|||
Cycle life |
2000 times |
|||
Package |
Glue case |
|||
Length |
395MM |
|||
Width |
110MM |
|||
Height |
75 MM
|
|||
Weight(Approx, including case) |
4KG |
|||
Impedance(Max, at 1000Hz) |
≤ 45mΩ |
|||
Charge Parameter | ||||
|
Charge method (CC/CV)
|
Standard |
CC |
0.2C |
3.65 cut off |
CV |
3.65V |
0.05C cut off |
||
Rapid |
CC |
1C |
3.8V cut off |
|
CV |
3.65V |
0.05C cut off |
||
|
Operate temperature
|
Charge |
0°~45°C |
||
Discharge |
-20°C~60°C |
|||
Storage |
-20°C~55°C |
|
Safe: The safest LiFePO4 battery so far, with CE, UL approved. Environmental-friendly: All of our LiFePO4 approved ROHS. Quality: Have obtained ISO9001-2008 and TS/16949 certification .Every cells in the same capacity , impedance ,self-discharging ,voltage ,discharge stage ,cc ratio .
|
Other features
1. Safety: safest Li-Ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: HP battery can discharge in 15C~20C
4. Long life cycle, > 2000 times deep cycle,8 times of lead acid battery
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery,
1/2 weight of lead acid battery
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
