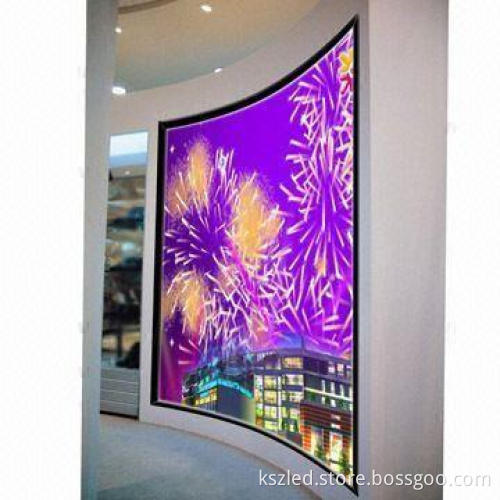

PH2.8mm LED display
PH2.8mm led display is definitely indoor led display. PH2.8mm is the smallest pixel pitch in all series. High resolution and brightness ensure clear and colorful video presentation.
Because of small pitch, pixel density is 127536 dots per sqm. It is a new device to play video with low power consumption and high frequency. It can be made as small as TV. For small size video, PH2.8mm is a good choice. For example, information showing in subway train.
Main parameters of the display:
1. Physical Pixel Pitch: 2.8 mm
2. Physical Pixel Density: 127551dots/m2
3. LED type: SMD2020
4. Module Size: 179mm*179mm
5. Module resolution: 64*64 dots
6. Cabinet size: 538mm*538mm
7. Cabinet resolution: 192*192
8. Max. power consumption: 1400 W/sq.m
9. Min. viewing distance: 1 m
10. Brightness: ≥ 1700CD/m2
11. IP grade: IP54 front side/IP54 backside
12. Operation Humidity (RH): 0-95%
13. Operating temperature (Celsius degree): -20～+55 degree
14. Servicing: front and back
15. Power supply: 100-240V/50-60HZ
16. LED Drive: constant-current drive
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | NO |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
