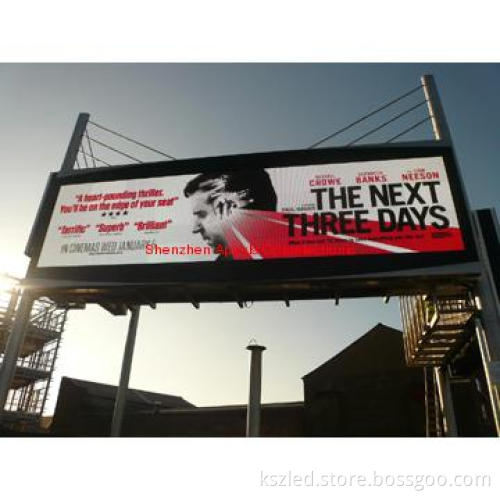

Outdoor and Indoor Full Color LED Display, CE, RoHS, UL Approval
| Item | PH10outdoor full color |
| LED | 346 |
| Pixel composition | 1R1G1B |
| Basic color | Red (Wave length 620-630nm) Green (Wave length 520-530nm) Blue (Wave length 465-475nm) |
| Pixel density | 10000dots/m² |
| Module size | 320mm(width)×160mm(height) |
| Module resolution | 32dots(width)×16dots(height) |
| Cabinet size | 960(w)×800mm(h)*130mm(Thickness) |
| Cabinet resolution | 96×80dots |
| Cabinet weight | 60Kg/pc |
| Blind dots | ≤2/10000 |
| Module split joint seam | ≤1mm |
| Best viewing distance | 8-240m |
| Viewing angle | Horizontal 120°, vertical 60° |
| Surface flatness | ≤1mm |
| Display surface black color | consistent black color, no reflection |
| Uniformity | Uniform brightness,uniformity 1:1.3 |
| Circuit board layout | Reasonable layout, circuit standard and aesthetic |
| Working temperature | —20°～50° |
| Humidity | 25°～95° |
| Input voltage (AC) | 110/220V ±10% |
| Linkage current | < 3mA |
| Input frequency | 50/60HZ |
| Input rated power | <380 W/m² |
| Input max. power | ≤840W/m² |
| Host operating system | XP computer+control software and hardware+playing software and hardware |
| Control way | Synchronous with computer VGA(display) |
| Control system | DVI display card+full color control card+optical fiber |
| Input way | Computer and ancillary, PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI etc.. |
| LED drive | static scan Constant current |
| Computer display mode | 640×480, 800×600, 1024×768 |
| Refresh frequency | ≥1200hz |
| Grey grade | 4096 grade |
| Brightness | ≥6500cd/m² |
| Life span | 100,000 hours |
| Display content | Video DVD, VCD, TV, Image, Text, Animation and others |
| Continuous failure-free working time | ≥10,000hours |
| Interface | Standard Ethernet network, RS-422 communication wire |
| Communication media, control distance | Multimode optical fiber <500m, single mode fiber< 30km, cat 5 cable <100m |
| Water proof | IP65 |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1 square meter |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | Full paymemnt before delivery, Generally FOB Shenzhen |
| FOB Port | Shenzhen |
| Loading Info | By sea or by air |
| Packing Info | Plywood case or flight case or carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
