China factory-14dbi wifi huawei router external antenna
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| frequency rang | 3400-3600MHz |
|---|---|
| Gain-dBi | 14 |
| Frequency | Other |
| Material | ABS |
Detail Description

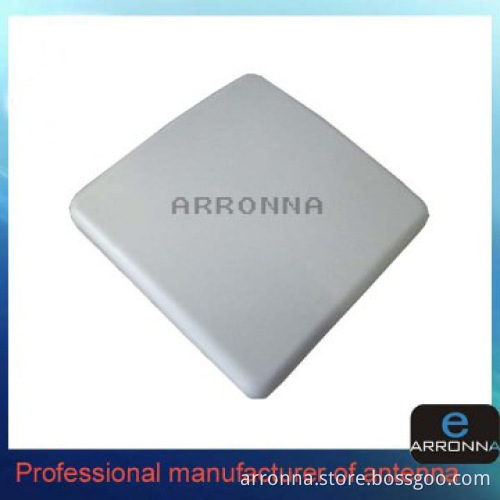

| Product Name | 3.5GHz double polarization panel antenna |
| Description | ARP-DP(3400-3600)-14-40: The panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof. |
| Electric Specification | |
| Model NO | ARP-DP(3400-3600)-14-40 |
| Frequency Range-MHz | 3400-3600 |
| Bandwidth－MHz | 200 |
| Gain-dBi | 14 |
| Horizontal Bear width－° | 40 |
| Vertical Bear width －° | 36 |
| F/B Ratio | 17 |
| VSWR | ≤1.5 |
| Input Impedance -Ω | 50 |
| Polarization | Vertical and horizontal |
| Maximum Power -W | 20 |
| Connector | SMA male elbow |
| Mechanical Specifications | |
| Dimensions-mm | 190*190*35 |
| Weight-kg | 0.47 |
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | shipment after getting payment |
| FOB Port | Shenzhen |
| Loading Info | FOBshenzhen Sample by Express,Fedex ,UPS,DHL,TNT |
| Packing Info | one piece/one plastic bag and box, 20 pieces/carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
