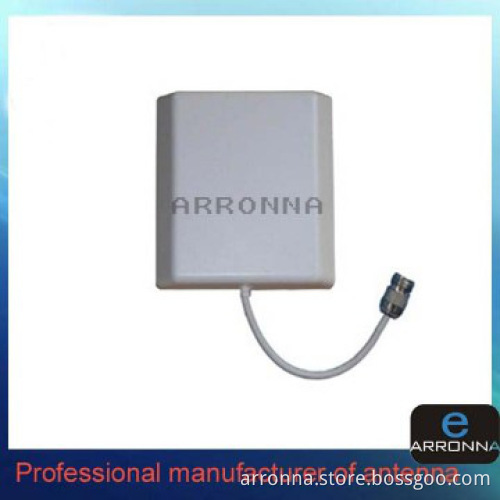

800-2500MHz single polarization panel antenna outdoor
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Gain | 10dbi |
|---|---|
| frequency rang | 806-960/1710-2700MHz |
| Frequency | Other |
| Gain-dBi | Other |
| Material | ABS |
Detail Description
| Product Name | 800-2500MHz single polarization panel antenna outdoor |
| Description | ARW-SP(800-2500)-8-2: The panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof. |
| Electric Specification | |
| Model NO | ARW-SP(800-2500)-8-2 |
| Frequency Range-MHz | 806-960/1710-2500 |
| Bandwidth－MHz | 154/790 |
| Gain-dBi | 7/10 |
| Horizontal Bear width－° | 70/60 |
| Vertical Bear width －° | 55/45 |
| F/B Ratio | ≥10/≥13 |
| VSWR | ≤1.5 |
| Input Impedance -Ω | 50 |
| Polarization | Vertical |
| Maximum Power -W | 50 |
| Connector | SMA |
| Mechanical Specifications | |
| Dimensions-mm | 210*180*45 |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 500 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | after getting payment |
| Loading Info | FOBshenzhen, sample by Express ,DHL ,fedex,UPS |
| Packing Info | one piece/box 20pcs/carton |
| Target Market(s) | North America, Eastern Europe, Middle East & South Asia, Mainland China, Northern Europe |
