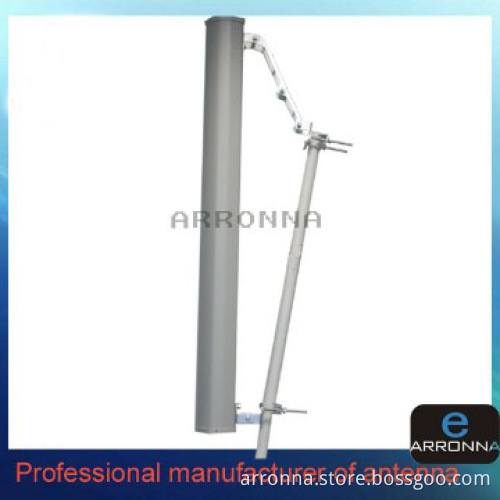

698-960/1710-2700MHz 17DBI LTE 4g base station wireless antenna 10KM
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Material | PVC |
|---|---|
| Gain | 14/17 |
| Gain-dbi | 17 |
| Frequency Range | Other |
| Size | 2200*289*132 |
| Weight | 10kg |
Detail Description
| Product Name | 698-960/1710-2700MHz single polarization LTE antenna |
| Description | ARP-DF(698-960/1710-2700)-14/17: The LTE panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof. |
| Electric Specification | |
| Model NO | ARP-DF(698-960/1710-2700)-14/17 |
| Frequency Range-MHz | 698-960/1710-2700 |
| Bandwidth－MHz | 262/990 |
| Gain-dBi | 14/17 |
| Horizontal Bear width－° | 65/65 |
| Vertical Bear width －° | 18/8 |
| F/B Ratio | 20 |
| VSWR | ≤1.8 |
| Input Impedance -Ω | 50 |
| Polarization | Vertical |
| Maximum Power -W | 100 |
| Connector | N |
| Mechanical Specifications | |
| Dimensions-mm | 2200*289*132 |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | shipment after getting payment |
| FOB Port | Shenzhen |
| Loading Info | FOBshenzhen sample by Express |
| Packing Info | one piece/one carton |
| Target Market(s) | North America, Hong Kong/ Macao/ Taiwan, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe |
