High Speed up to 5Gbps Transfer and Dater USB 3.0 Cable
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| usb version | usb 3.0 |
|---|---|
| usb 3.0 type | male to micro B |
| Color | Black |
| Interface Type | USB |
Detail Description
High Speed up to 5Gbps Transfer and Dater USB 3.0 Cable
Specifications of usb 3.0 cable:
Item name |
USB 3.0 Cable |
Connector |
AM,AF,BM,Micro BM, |
connector finish |
Gold or Nickel-plated connector |
Color |
Blue or black color available |
Length |
1-5M available |
Data speed |
USB3.0 super speed of up to 5GBps supported |
Compatibility |
backward compatible with USB1.1&2.0 |
Outer diameter |
4.5mm or 5.5mm |
Lines |
standard 9 lines |
Conductor |
bare copper or tined-copper |
Ferrite cores |
Optional |
Features of usb 3.0 cable:
- SuperSpeed 4.8Gbps Data Transfer Rate
- SuperSpeed USB 3.0 Delivers up to 10x USB 2.0\'s Transmission Rate
- USB 3.0 Cable Supports Full-duplex Data Transmission
- USB 3.0 is More Power Efficient
- USB 3.0 Cable Retains the Plug and Play Feature and is Fully Compatible with USB 2.0
- USB 3.0 Cable Connectors are Added 5 Channels Compared with USB 2.0 (4 of the 5 Channels are Used for a Full Duplex Data Transmission)
- USB 3.0 Cable Power Ability is 900mA. USB Hub Could Connect More Equipment at the Same Time (USB 2.0 is Only 100mA)
- Cable length: 6 Feet
- Backwards compliant with High-Speed USB 2.0 port (transfer rate at 480Mbps) as well as USB 1.1
- Supports 32-bit & 64-bit Windows XP/Server 2003/Vista/Server 2008/Windows 7 or later
Electrical of usb 3.0 cable:
100% open & short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to 65% braid.
Working Temperature: -25oC ~ +85oC
Mechanical of usb 3.0 cable:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min

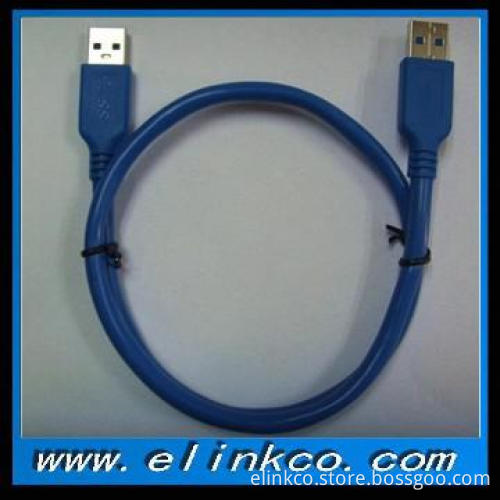

photo show of usb 3.0 cable:
Additional Information
| Payment Terms | L/C, T/T, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 500pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | within 15 working days |
| FOB Port | Shenzhen |
| Loading Info | by express or by sea |
| Packing Info | 1 pc /PE bag |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
