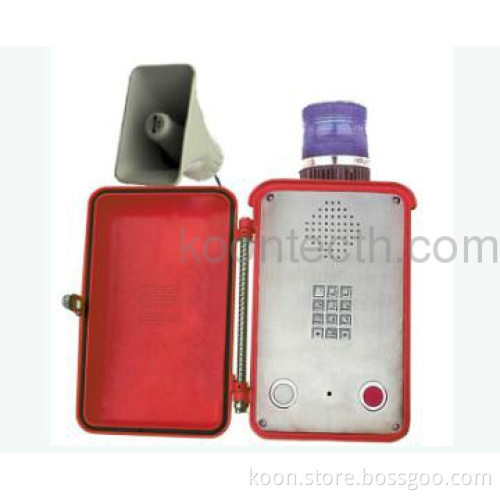

waterproof telephone Handfree loudspeaking
  • waterproof telephone Handfree loudspeaking
waterproof telephone Handfree loudspeaking

waterproof telephone Handfree loudspeaking

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

material aluminum alloy die - casting

Detail Description

Product general description
1.1 Main Product features
1.  Robust aluminium alloy die-cast body,  Vandal resistant and tamper-resistant hardware, simple installation.
2.  Full keypad with memory, 10 button programmable speed-dial telephone
3.  One calling button, One auto-dialing call button for emergency call.
4.  Door cover: orient automatically and good self - closing, convenient for use.
5.  Weather resistant to IP67 standard, service temperature range from:-30℃ to +75℃
6.  Magnetic reed hook-switch
7.  Robust  AC cord, AC power supply from 110V~240V. Built in battery optional.
8.  Lightening protection to ITU-T recommendation K.21
9.  Hearing Aid compatible receiver, Noise canceling microphone.
10.  Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational.
11.  Selectable 7 minute time out, to release the line if the handset is left off hook.
12.  All of the components including keypad, buzzer, circuit board and cabinet are designed to be multi - layer waterproof and dust - proof which is up to Class III grade. The whole machine is up to national standard GB4208-93 IP 66.
13.  Phone is provided with high stability, high anti-jamming capability standard to GB/T 15279-94.
14.  Built-in amplifier 15W. Loud speaker: 15W (30W optional). Built-in transformer. When the other side call this unit this speaker will ring loudly. After 5 times (the phone itself is set for 5times and this time adjustable) ring if still no body pick up handset the phone will put through by itself. Calling side can broadcast and its voice can spread to the workers nearby or other maintenance workers will easy to notice through loudspeaker.
15.  The phone will stop the line (release the line) when the other side cut off the line.

Handset
Kirk electro dynamic transducer for both handset transmitter and receiver
Spring cable or armoured cable to attach the handset to the telephone main unit
Stainless steel cable to connect exchange.
Inductive coupler fitted for hearing aid compatibility.
Handset integrity wiring to enable exchange to check if the phone is still operational.

ELECTRONIC
Main PCB
Well treated PCB used inside the phone.
Robust screw terminals used for the connection of ringer, handset, line in, hookswitch.
Selectable 7 minute time out, to release the line if the handset is left off hook.
All connectors be greased in production.

TECHNICAL SPECIFICATION
1、 Applicable for various types of SPC exchange and dispatching exchange system with feeding voltage of 33-60V.
2、 Ambient temperature:-30℃~60℃ Relative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:≤ 60dB(A)
3、 Sound level of ringing:≥70dB(A).
4、 Standard frequency:low frequency group:697、770、852、941Hz,
high frequency group:1209、1336、1477Hz, frequency deviation:≤±1.5%
If service line is a 3Km signal-level:
Standard frequency:low frequency group:-9dB±3dB,high frequency group:-7dB±3dB,level difference between low and high frequency of compound signal:2±1dB,the total distortion caused by intermodulation of harmonic wave is lower than the basic level by at least 20dB.
5、 Call transmission index:(5KM)SLR≤12,RLR≤-1,STMR≥10, output impedance is 600Ω.
6、 Super strong function is available for dialing 12 groups of numbers stored in the memory (maximum length of each store number is16 digits)
7.  AC power supply: 120V~240V
8.  Amplifier and loud speaker: 15W ( 30W optional)
