3.072G DWDM SFP 40km 100Ghz CH17~61

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Distance	40km
Wavelength	Other
Connector	LC
Work Temperature	0~70℃

Detail Description

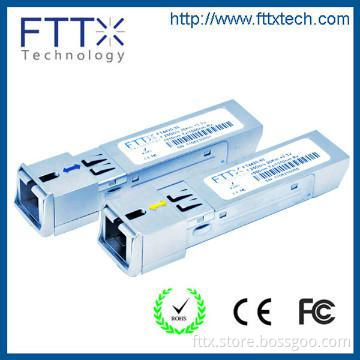

The FT3A40D-Dxx transceivers are high performance, cost effective modules supporting dual data-rate up to 3.072Gbps and 40km transmission distance with SMF. It consists of three sections: a DWDM laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Application:
Ø CPRI
Ø OBSAI

Key Feature:
Ø Up to 3.072 Gb/s bi-directional data links
Ø Hot-Pluggable SFP Footprint LC Optical Transceiver
Ø Digital Diagnostic Monitor Interface Compatible with SFF-8472
Ø DWDM laser transmitter
Ø Duplex LC Connector
Ø Single +3.3V Power Supply
Ø Up to 40km on 9/125μm SMF at3.072Gb/s
Ø Operating temperature range: 0°C to 70°C
Ø RoHS Compliant Products

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT3A40D-Dxx	100Ghz CH17~61	DWDM-LD	0 ~5dBm	≦-18.0dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	2
Lead Time / Delivery Time	9 Day(s)
Sample Available	YES
FOB Port	Hong Kong,Shenzhen
Target Market(s)	Africa(except Middle East), North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe
