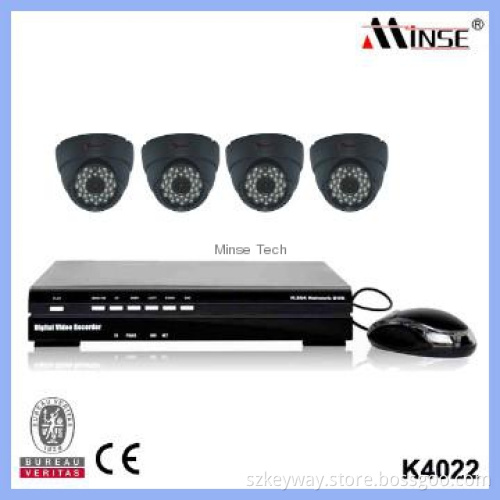

Cheap DIY 4CH CCTV DVR Kit, H.264 Home Security System with 4 Cameras

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Name	4ch DVR Kit
Resolution of Camera	OV CMOS 600tvl
Color of Camera	Black / White
IR Leds	35*5mm
VGA	Yes
IR Distance	10-25 m
Motion Detection	Yes
DVR	4CH H.264 DVR
Warranty	1 Year
Camera	CMOS CCD 600TVL Dome Camera
Night Vision	Yes

Detail Description

DVR Features

1. Video compression format is the second-generation H.264 (Main Profile).

2.Support Up to 1x 1TB

3.support the six operation working simultaneously, recording, playback, network transmission, backup,

mobile phone surveillance and interface operating.

4.Support Window Mobile, Symbian, Android, iPhone, BlackBerry.

Come with a dynamic domain name, don\'t need to apply for it. Automatically through the router,

no need to manually map the ports.

Camera Features

1. 1/3\" Sony CCD

2. 420 TV Lines Horizontal Resolution

3. 3.6mm Lens

4. 24PCS IR Leds,15-20M IR Distance

5. IP66 Waterproof Grade

SPECIFICATION	7004S
Video System	NTSC / PAL
Video Compression Format	H.264
Video Input	4CHs. Composite video signal 1 Vp-p 75Ω BNC
Video Output	Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC, VGA
Maximum Recording Rate	CIF: 240 fps <NTSC> / 200 fps <PAL>
Hard Disk Storage	SATA type, supported HDD*1, support each HDD capacity Max.2000GB
Recording Mode	Manual / Timer / Motion / Alarm
Recording Rate	Full D1
Multiplex Operation	Live display, record, playback, backup and network
Audio I/O	1audio inputs, 1 audio outputs
Backup Device	USB2.0 flash drives ,network , USB DVD-RW
Web Transmitting / Compression Format	H.264
Ethernet	10/100 Base-T. Support remote control and live view via Ethernet.
Web Interface	Support client software AP, and IE browser
Network Connection	TCP/IP, PPPoE, DHCP and DDNS
Remote Control	Remotely control DVR via IR transmitter
VGA	yes

Multilingual OSD	Yes
Support 3G GPRS	Yes

Key Lock	Yes
Video Loss Detection	Yes
Power Source	DC 12V@3A
Power Consumption	6W without HDD
Operating Temperature	-10°C ~ 60°C
Dimensions (mm)	250(W) × 45(H) × 235(D)
System Recovery	System auto recovery after power reconnecte

Item Includes

1*4CH H.264 Network Digital Video Recorder

1* Mouse for DVR

1* Remote Controler for DVR

1* DC 12V/ 2A Power Adapter

4* 1/3\" OV CMOS 600tvl Indoor Dome Camera

4* 20M Power Video Plug and Play Cable for CCTV Camera

1* 4CH AC 100-240V to DC 12V Power Supply Adapter for CCTV Camera

Shipping and Payment Terms

Warranty & Aftersales Services

1. 2 years warranty,by replace/repair/free spare parts for bulk order.

2. Considering the expensive shipping cost for you,broken camera is no need to send back to China, just let us know the problem through a video or a picture, then,we will send the replacement to you in your next shipment.

3. Any questions or confustion, please feel free to let us know.

OEM and ODM are Welcomed

Additional Information

Payment Terms	L/C, T/T, Western Union, Paypal
Minimum Order	10pcs
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	2-3 working days for sample.5-10 working days for bulk.
FOB Port	Shenzhen
Loading Info	FOB Shenzhen
Packing Info	1pc / color box with PE bag and foams.
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
